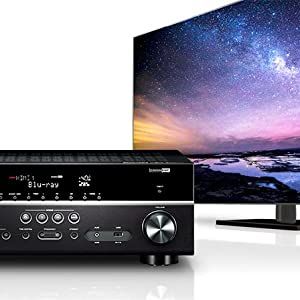

The Yamaha-3072 IN is compatible with the latest HDMI standards. It also supports HDR (high dynamic range) Video including Dolby Vision and Hybrid Log-Gamma to provides incredible contrast, smooth tone to give you full high-definition experience and an exceptionally realistic and natural picture quality. It employs a discrete amp configuration and a low-jitter PLL circuit, which contributes to its excellent audio performance.

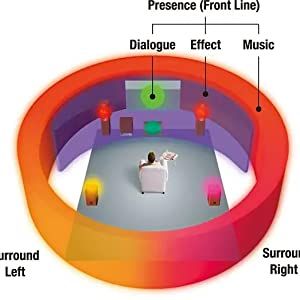

Comes with Yamaha cinema DSP technology which supports playback of HD Audio like Dolby TrueHD, DTS-HD Master Audio, etc to give you natural and expansive sound imaging. Transforms the dynamics of the listening with acoustic reproduction to let you experience their ambience right in your room.

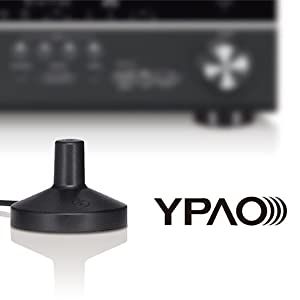

YPAO which analyzes the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room. Just place the microphone where you sit while watching movies and the YHT3072 IN home theater system will automatically tune to provide you with better sound quality and deliver low range dialogues without any issue.
You don’t have to connect your phone with wires anymore, the Yamaha YHT-3072-IN comes with Bluetooth connectivity. Enjoy your music sitting anywhere in the room without connecting your phone with the speakers with wire. The HTR-3072 was designed with a strong focus on achieving exceptionally high clarity sound.

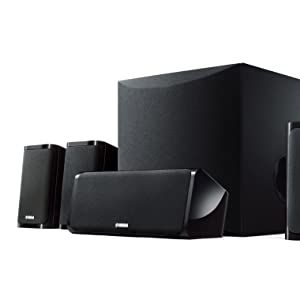

Speakers are tuned in such a way that they deliver a soft sound which is pleasant to your ears while listening for long periods. The surround speakers and subwoofer are tuned for perfect sound crossover. You can enjoy these speakers with rich and quality audio. it also prevents interference between the high and low sounds, further improving the sound of the front speakers.

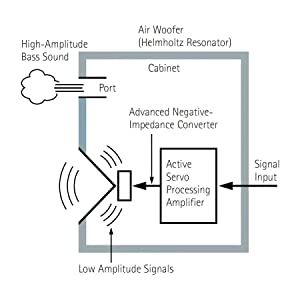

Comes with Yamaha Active Servo Technology II which combines negative impedance and constant-current principles driving the speaker cone with even tighter control than before. Which provides you more stable and accurate low range response. The YHT3072 was designed with a strong focus on achieving exceptionally high clarity sound. It employs a discrete amp configuration and a low-jitter PLL circuit, which contributes to its excellent audio performance.
IN THE BOX | |
---|---|
Sales Package | 4 Front & Surround Speakers, 1 Centre Speaker, 1 Subwoofer, AV Receiver with Remote Control & YPAO Microphone, Owner's Manual, FM & AM Antenna |
General | |
---|---|
Brand | Yamaha |
Model | YHT 3072 IN |
Color | black |
Subwoofer | |
---|---|
Type | Advanced YST II |
Driver | 20 cm (8â€) cone |
Output Power | 50 W (5 ohms, 100 Hz, 10% THD) |
Dynamic Power | 100 W (5 ohms) |
Frequency Response | 28–200 Hz |
Twisted Flare Port | Yes |
Power Consumption | 40 W |
Dimensions (W x H x D) | 291 x 292 x 341 mm; 11-1/2†x 11-1/2†x 13-3/8†|
Weight | 8.5 kg; 18.7 lb |
Surround Speaker | |
---|---|
Type | Full-range bass-reflex |
Driver | 7 cm (2-3/4â€) full-range cone |
Nominal Input Power | 30W |
Maximum Input Power | 100 W |
Sensitivity | 83 dB / 2.83 V / 1 m |
Dimensions (W x H x D) | 112 x 176 x 116 mm; 4-3/8†x 6-7/8†x 4-5/8†|
Weight | 0.59 kg / unit; 1.3 lbs. / unit |
Surround Sound Processing | |
---|---|
CINEMA DSP | Yes |
Dialog Level Adjustment | Yes |
SILENT CINEMA / Virtual CINEMA DSP | Yes (Virtual CINEMA FRONT) |
Dolby TrueHD | Yes |
Dolby Digital Plus | Yes |
DTS-HD Master Audio | Yes |
DSP Programs | 17 |
Center Speaker | |
---|---|
Type | Full-range acoustic suspension |
Driver | 7 cm (2-3/4â€) full-range cone |
Nominal Input Power | 30 W |
Maximum Input Power | 100 W |
Sensitivity | 84 dB / 2.83 V / 1 m |
Dimensions (W x H x D) | 276 x 111 x 118 mm; 10-7/8†x 4-3/8†x 4-5/8†|
Weight | 0.73 kg; 1.61 lbs. |
Front Speaker | |
---|---|
Type | Full-range bass-reflex |
Driver | 7 cm (2-3/4â€) full-range cone |
Nominal Input Power | 30 W |
Maximum Input Power | 100 W |
Sensitivity | 83 dB / 2.83 V / 1 m |
Dimensions (W x H x D) | 112 x 176 x 116 mm; 4-3/8†x 6-7/8†x 4-5/8†|
Weight | 0.59 kg / unit; 1.3 lbs. / unit |
Speaker System | |
---|---|
System Frequency Response | 28 Hz–25 kHz |
Impedance | 6 ohms (without subwoofer) |
Channel | 5.1 |
Tuner Section | |
---|---|
On-screen display | Yes (colour OSD) |
SCENE | 4 sets |
Remote Control Unit | Yes |
FM/AM Tuner | Yes |
Standby Power Consumption (IR only) | ≤0.2W |
Auto Power Standby | Yes |
ECO mode | Yes |
Dimensions (W x H x D) | 435 x 161 x 315 mm; 17-1/8†x 6-3/8†x 12-3/8†|
Weight | 7.7 kg; 17.0 lbs. |
Amplifier Section | |
---|---|
Channel | 5.1 |
Rated Output Power (1kHz, 1ch driven) | 100 W (6 ohms, 0.9% THD) |
Rated Output Power (20Hz-20kHz, 2ch driven) | 70 W (6 ohms, 0.09% THD) |
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) | 135 W (6 ohms, 10% THD) |
Dynamic Power per Channel (8/6/4/2 ohms) | - / 110 / 130 / 150 W |
Video Features | |
---|---|
4K Ultra HD Pass-through and upscaling | Yes (4K / 60p, 4:4:4) |
HDMI 3D passthrough | Yes |
HDMI eARC | Yes (via future firmware update) |
HDMI Audio Return Channel | Yes |
HDMI upscaling | Yes (HDMI® to HDMI) |
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync | Yes |
Audio Features | |
---|---|
File Format | MP3 / WMA / MPEG-4 AAC / WAV: up to 48 kHz / 16-bit |
DA Converter | Burr-Brown 384 kHz / 32-bit DAC x 3 |
Audio Delay | (0-500 ms) |
Compressed Music Enhancer | Yes (incl. enhancer for Bluetooth®) |
YPAO sound optimization | Yes |
Adaptive DRC (Dynamic Range Control) | Yes |
Initial Volume & Maximum Volume Setting | Yes |
Connectivity | |
---|---|
HDMI Input/Output | 4 / 1 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible) |
USB Input | USB Memory, Portable Audio Player |
Front AV Input | USB / Mini Jack |
Digital Audio Input/Output: Optical | 1/0 |
Digital Audio Input/Output: Coaxial | 2/0 |
Analog Audio Input/Output | 3 (front 1) / 0 |
Composite Video Input/Output | 3/1 |
Preout | SW |
Headphone Output | 1 |
HDMI CEC | Yes |
Bluetooth | Yes |
Warranty | |
---|---|
Warranty Type | Manufacturer |
Warranty Period | 1 Year Warranty |
