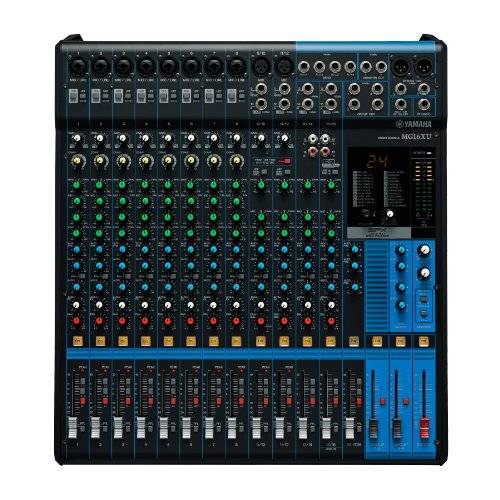

Yamaha Mg16xu 16-channel Console Digital Mixer

  (5)   4 Ratings and 4 reviews
|
MODEL: MG16XU
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Yamaha Mg16xu 16-channel Console Digital Mixer color image
Special Deal
3 Left in Stock!
Deal Claimed ( 60%)
special offer image
Offer Price Valid For Limited Time
Price: ₹ 55900.00
Today's Price:41800
Price : Rs. 55900.00 25% off
Rs. 41800 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery
original stamp icon
offer icon

More Offers

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • 16-Channel Mixing Console.
  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo).
  • 4 Group Buses + 1 Stereo Bus.
  • D-PRE” mic preamps with an inverted Darlington circuit.
  • High-grade effects: SPX with 24 programs.
  • 24-bit/192kHz 2in/2out USB Audio functions.
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter.
  • Includes Cubase AI DAW software download version.
  • PAD switch on mono inputs.
  • +48V phantom power.
  • XLR balanced outputs.
  • Internal universal power supply for world-wide use.
Product features

The Yamaha MG16XU is a powerful and versatile mixing console designed for a wide range of live sound and recording applications. With 16 channels and a range of advanced features, the MG16XU is a popular choice for musicians, sound engineers, and producers looking for a high-quality mixing console. This makes it easy to create a professional-sounding mix without the need for additional outboard gear.


In addition to its effects processing, the MG-16XU by Yamahaalso features Yamaha's innovative D-PRE preamps, which provide high-resolution sound with minimal noise and distortion. This ensures that your recordings and live sound are clear and detailed, even at high volumes.

 built-in effects processing

built-in effects processing

One of the important features of the MG 16XU digital mixeris its built-in effects processing. The console features a range of high-quality effects, including reverb, delay, and chorus, that can be easily applied to individual channels or the overall mix. This makes it easy to create a professional-sounding mix without the need for additional outboard gear.

Intuitive Interface

Intuitive Interface

The Yamaha-MG16XU is also designed to be easy to use, with an intuitive interface and simple controls. This makes it a great choice for musicians and sound engineers who are new to mixing consoles, as well as those who need to create a mix quickly and efficiently.

USB audio interface

USB audio interface

The Yamaha MG16-XU is also a great option for recording applications, thanks to its built-in USB audio interface. This allows you to easily connect the console to your computer and record audio directly into your DAW software, without the need for additional audio interfaces or cables.

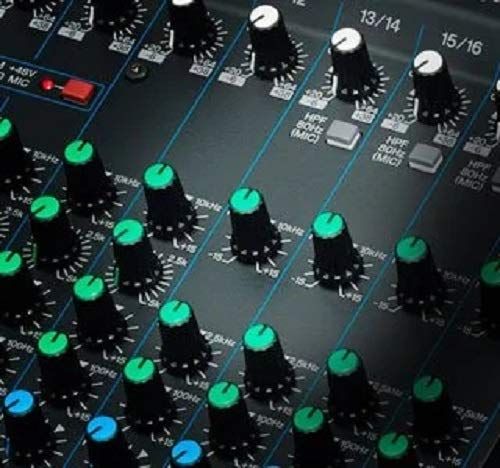

3-band equalizer

3-band equalizer

Another standout feature of the Yamaha MG16XU digital mixeris its versatile EQ section. The console features a 3-band equalizer with a swappable midrange, as well as a high-pass filter and a 26dB pad. This allows you to tailor the sound of individual channels to your liking, and helps you to achieve a balanced mix.

High-Quality Components

High-Quality Components

The Yamaha MG-16Xu is also built to last, with a rugged metal chassis and high-quality components that are designed to withstand the rigors of touring and live sound. This makes it a great choice for musicians and sound engineers who need a reliable and durable mixing console that can stand up to frequent use.

Yamaha MG16XU

Yamaha MG16XU

The Yamaha MG16XU is an excellent choice for anyone in the market for a high-quality mixing console. With its advanced features, intuitive interface, and reliable construction, the MG16XU is a standout option in its class, and is sure to provide years of reliable service for musicians, sound engineers, and producers alike.

IN THE BOX
Sales Package Yamaha MG16XU 16-Channel Mixing Console and User documentation
General
BrandYamaha
ModelMG16XU
Colorblack
Dimension
Dimension‎52.3 x 21.3 x 55.9 cm
Weight9.5 Kilograms
Specifications
Mixing CapabilityOn-board processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O
Phantom power: +48 V
Digital I/O:USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels
Mono[MIC/LINE]: 8
Mono/Stereo[MIC/LINE]: 2
Stereo[LINE]: 2
Output Channels
STEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 4
GROUP OUT: 4
BusStereo: 1, GROUP: 4, AUX: 4 (incl. FX)
Input Channel Function
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
EQ Low: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Total harmonic distortion0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk-78 dB
Power requirementsAC 100 – 240 V, 50 / 60 Hz
Power Consumption30 W
Accessoriesncluded Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 Year

Additional Info

CUSTOMER REVIEWS

( Yamaha Mg16xu 16-channel Console Digital Mixer Reviews )

5

4 Ratings &
4 Reviews
  • 5 ★
    4
  • 4 ★
    0
  • 3 ★
    0
  • 2 ★
    0
  • 1 ★
    0
Mar 01, 2023
Excellent
thomson | certified buyer
I recently purchased the Yamaha MG16XU mixer from Vplak and I am extremely happy with my purchase. The sound quality is amazing and the mixer is very easy to use. The built-in effects are great and the EQs are very responsive. The mixer itself is also very sturdy and well-built, so I know it will last me a long time. I would highly recommend this product and vplak to anyone looking for good quality audio product.
Feb 08, 2023
Amazing product Buy from Vplak
Piyush yadav | certified buyer
I bought the Yamaha MG16XU from Vplak and I am extremely satisfied with my purchase. The mixer is well-built and the sound quality is amazing. The preamps are clean and transparent, and the EQs are very responsive. I also love the USB interface that allows me to record directly into my computer. I would highly recommend this mixer to anyone looking for a high-quality, reliable product.
Jan 09, 2023
Best Mixer ever purchased
Dinesh | certified buyer
I am extremely impressed with the Yamaha MG16XU mixer that I recently purchased from Vplak. It is a great addition to my home studio and the sound quality is exceptional. The built-in effects and EQs are easy to use and the mixer itself is very intuitive. I highly recommend this product to anyone looking for a high-quality mixer at an affordable price. I would also like to appreciate excellent service from vplak.
Dec 21, 2022
Very Satisfying of this product
Gautam Bajaj | certified buyer
Few days ago I purchased the Yamaha MG16XU from Vplak and I am extremely impressed with its performance. The mixer is very versatile and easy to use, and the sound quality is exceptional. The built-in effects are great and the EQs are very responsive. The mixer itself is also very sturdy and well-built, so I know it will last me a long time. I would definitely recommend this product to anyone looking for a high-quality mixer at an affordable price.

CUSTOMER QUESTIONS

Ask Question
Name:
Email:
Question:
Q: Does the Yamaha MG16XU come with a power supply?
A: Yes, the Yamaha MG16XU comes with an AC power supply that can be used to power the mixer.
Q: Can the Yamaha MG16XU be used for recording?
A: Yes, the Yamaha MG16XU comes with a USB interface that allows you to connect it directly to your computer for recording.
Q: Does the Yamaha MG16XU come with built-in effects?
A: Yes, the Yamaha MG16XU comes with a range of built-in effects including reverb, delay, chorus, and more.
Q: What are the dimensions of the Yamaha MG16XU?
A:  The dimensions of the Yamaha MG16XU are 444 mm x 130 mm x 500 mm.
Q: How many channels does the Yamaha MG16XU have?
A:  The Yamaha MG16XU has 16 channels, allowing you to connect multiple instruments and microphones at once.
