Don't get fooled by its compact, portable form factor, the DHR12 M pumps 1000 watts Class-D power via high-compliance low-frequency driver of 10-inch and a 1.75-inch which is coaxially mounted on a high-output 12-inch low-frequency unit. No matter what your applications are, DHR10 will fulfil all your audio reinforcements needs with full range 52Hz–20kHz frequency response and 129dB max SPL.
Yamaha offers a ideal solution for anyone who wants to elevate their sound reinforcement game to a professional level. Yamaha DHR12M delivers processional quality audio ,accuracy and high-performance with ease. Premium plywood cabinet provide a toughness and durability , not seen in any loudspeaker in this segment.
Each DHR 12M is optimized to fulfil the demands for various sound reinforcement use. Packed with practical features specially designed to used as a floor monitor, and a 15-inch version for FOH applications, The DHR series provides you with flexibility to select the ideal speaker for a broad spectrum of sonic environments. Its the perfect time to add DHR10 your setup.
DHR12M maintains crystal-clear sound due to advanced FIR-X crossover tuning which makes it eliminate loss of clarity or volume in frequencies near crossover points. FIR-X optimizes phase relationships and frequencies to minimize crossover distortion.

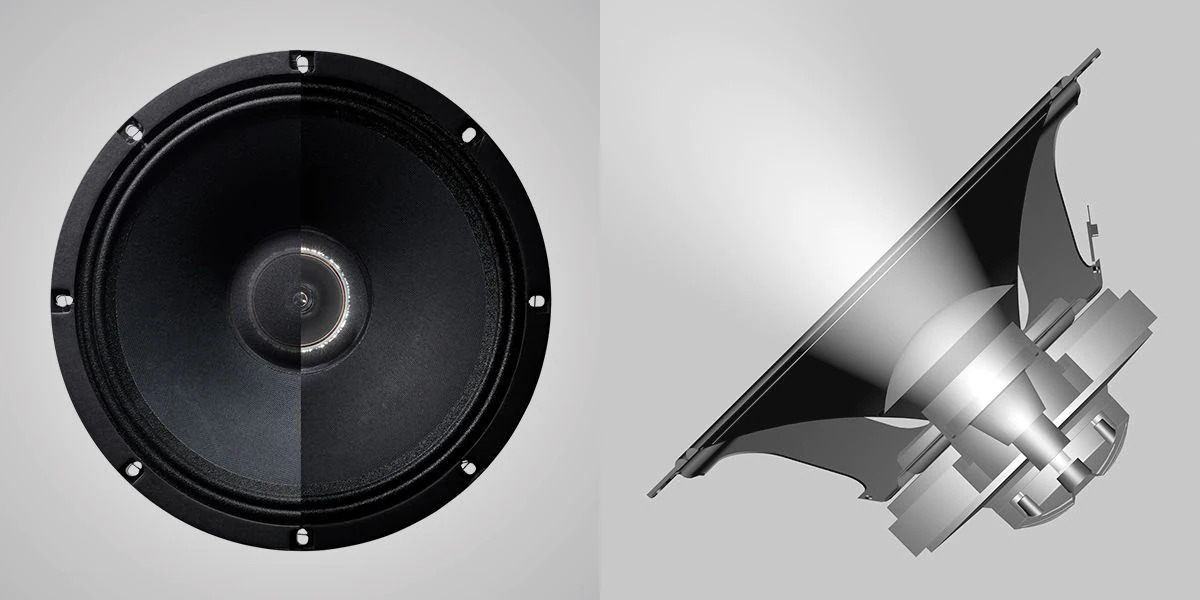

High-performance and High-output woofer reproduce well-defined , powerful bass with minimum distortion while accurate mid-range and high frequencies are produced by 1.75-inch coaxially mounted driver.
IN THE BOX | |
---|---|
Sales Package | Stage Monitor, User documentation |
General | |
---|---|
Brand | Yamaha |
Model | DHR12M |
Color | black |
Specifications | |
---|---|
Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex |
Frequency range (-10dB) | 55 Hz - 20 kHz |
Coverage area | H90゚ x V90゚ |
Crossover | 1.8 kHz: FIR-X tuningâ„¢ (linear phase FIR filter) |
Maximum Output Level | 129 dB SPL |
Components | LF Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite HF Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite |
Amplifier class | Class-D |
Power rating | Dynamic 1,000 W (LF: 800 W, HF: 200 W) *1 |
Power consumption | 74 W (1/8power), 18 W (Idle) |
Power requirements | 100 V, 100-120 V, 220-240 V |
A/D D/A Converters | 24 bit 48 kHz Sampling |
Processors | HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF |
I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
Cabinet material | Plywood |
Finish | Durable Polyurea Painting, Black |
Dimension | |
---|---|
Dimension | 50.17 x 45.72 x 34.29 cm |
Weight | 16.47 Kilograms |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
