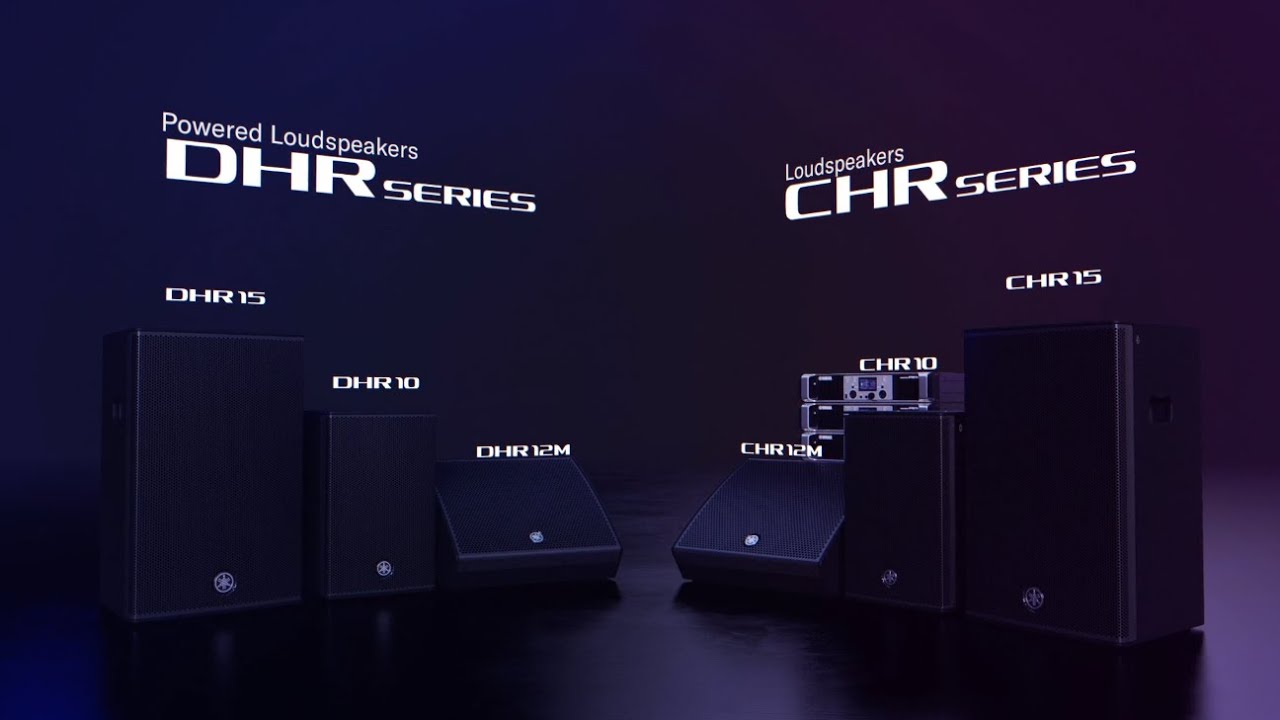

Each DHR 10 is optimized to fulfil the demands for various sound reinforcement use. Packed with practical features specially designed for their unique application, The DHR series provides you with flexibility to select the ideal speaker for a broad spectrum of sonic environments. Its the perfect time to add DHR10 your setup.

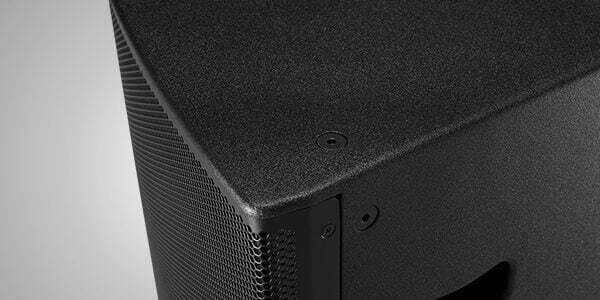

Yamaha offers a ideal solution for anyone who wants to elevate their sound reinforcement game to a professional level. Yamaha DHR 10 delivers processional quality audio ,accuracy and high-performance with ease. Premium plywood cabinet provide a toughness and durability, not seen in any loudspeaker in this segment.
DHR10 maintains crystal-clear sound due to advanced FIR-X crossover tuning which makes it eliminate loss of clarity or volume in frequencies near crossover points. FIR-X optimizes phase relationships and frequencies to minimize crossover distortion.

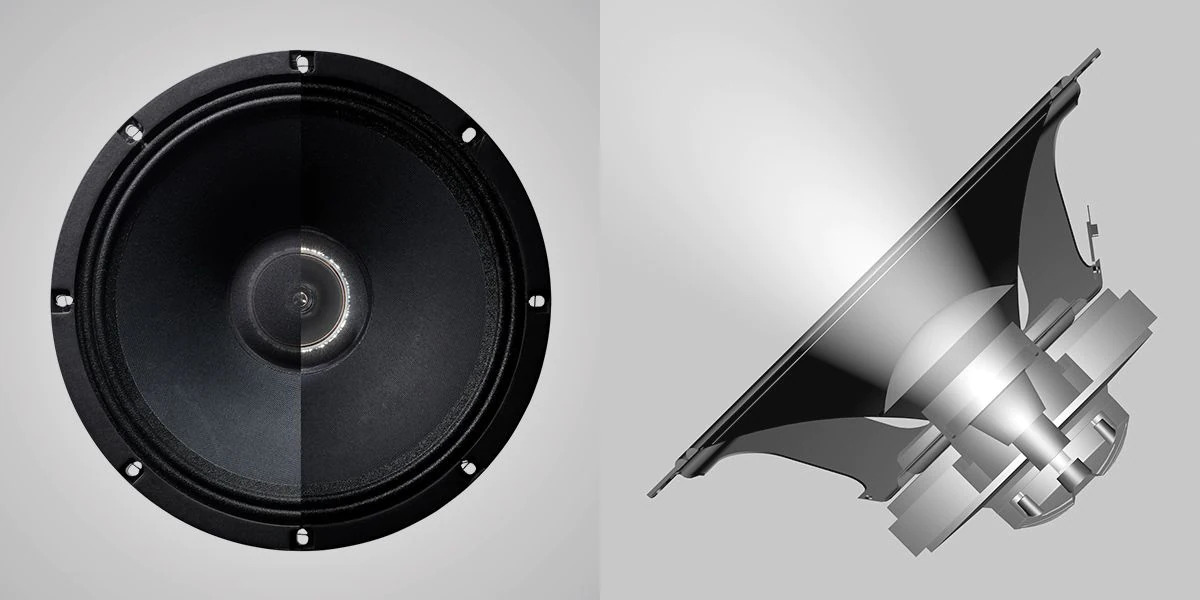

High-performance and High-output woofer reproduce well-defined , powerful bass with minimum distortion while accurate mid-range and high frequencies are produced by 1.4-inch precision compression driver.
DHR 10 is specially designed to meet the variety of demands of specific applications. Equipped with rotable HF horn and dedicated U-bracket making it easy to install and use in both horizontal and vertical position.
IN THE BOX | |
---|---|
Sales Package | Speaker, User documentation |
General | |
---|---|
Brand | Yamaha |
Model | DHR 10 |
Color | black |
Specifications | |
---|---|
Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex |
Frequency range | 52 Hz - 20 kHz |
Coverage area | H90゚ x V60゚ (Rotatable) |
Crossover | 1.9 kHz: FIR-X tuningâ„¢ (linear phase FIR filter) |
Maximum Output Level | 128 dB SPL |
Components | LF Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite HF Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite |
Amplifier class | Class-D |
Power rating | Dynamic 700 W (LF: 500 W, HF: 200 W) *1 |
Power consumption | 60 W (1/8power), 18 W (Idle) |
Power requirements | 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz |
Processors | HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF |
I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
Cabinet material | Plywood |
Finish | Durable Polyurea Painting, Black |
Dimension | |
---|---|
Dimension | 30.48 x 29.85 x 49.53 cm |
Weight | 14.97 Kilograms |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 years |
