The Wharfedale DIAMOND 12.2 allows a little more from a traditional standmount speaker format and embodies the history and performance values of the Wharfedale DIAMOND series.Perfect for larger rooms and more powerful 2-channel hi-fi systems and deliver amazing sound which enhance your music experience.Highly compact, but with a larger cabinet volume and larger driver for even more potential, the Wharfedale Diamond 12.2 offers a little more of a traditional standard speaker format and embodies the history and performance values ​​of the Wharfedale Diamond series.
It gives your home a movie theater like experience and sound comes from the speakers directly fills your heart.Enjoy the exceptional 12 series wharfedale diamond 12.2 with the amazing build quality with the thundering experience.
The rear-ported enclosure in Diamond 12.2 is perfect sized so that the internal volume works in euphony with the drive unit system to deliver the desired sonic result. A multi-layered sandwich design subdues the identiï¬able characteristics of the cabinet’s ‘sound’. Even the resonant properties of the glue between the layers was measured to determine the optimum combination.
The crossover network works on an acoustic LKR 24dB topology. That gives air-core inductors of the type more commonly found in high-end speakers, because it produce the lowest distortion of all the inductor types. As the resistance of the coil is higher than a standard laminated steel or ferrite core inductor, the magnetic structure of the bass driver modiï¬ed to compensate, resulting in fast, clean bass with no distortion from the inductor.
A woven polyester ï¬lm is used in 25mm dome with a high-loss coating to deliver open and smoothly extended high frequencies. There has been optimisation of magnet system nd the front plate for wide dispersion and uncompressed behaviour. The front plate is flat and exposes the dome as much as possible; only a very short duct on the front plate balances the acoustic load and improves the SPL (sound pressure level) measurement.

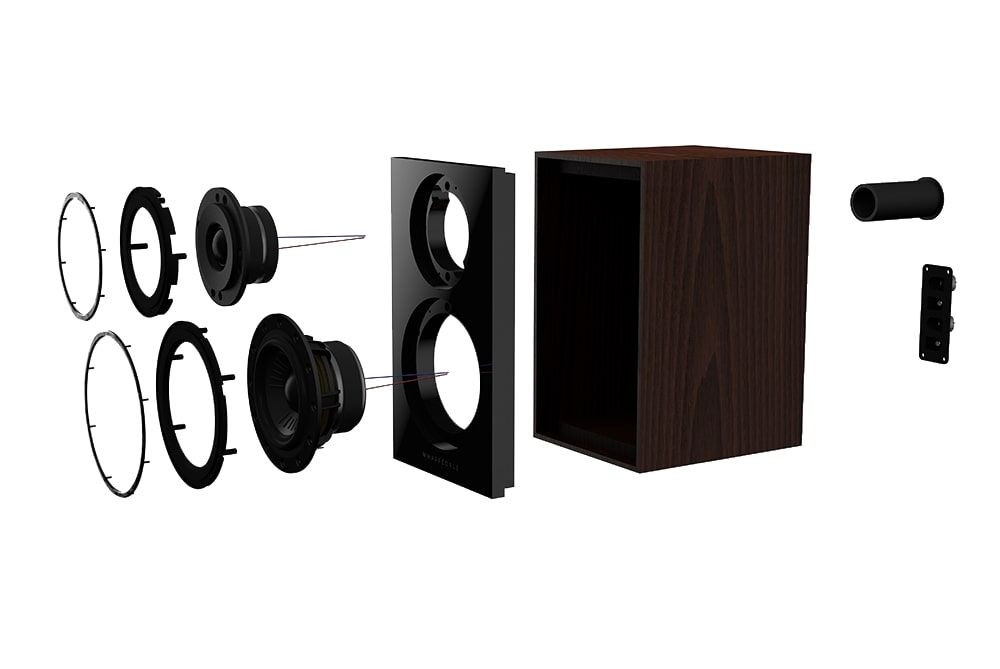

The voice coil of 12.2 series of wharfdale is wrapped with a high-power epoxy/glass ï¬bre bobbin highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.
Diamond series models allows two sets of high quality and 5-way binding post terminals for optional bi-wire connection. There are angled terminals allowing easier access and neater wire management. These connection gives you a smooth connectivity to pulg-in and home connection.
Diamond 12.2 cabinet walls engage with a multi-layered sandwich design to vanquish resonance. Inside the cabinet, highly equpied Spot Bracing connects opposite walls with a wooden brace to further reduce panel flexing and vibration. Those braces are precisely modeled by computer simulation to improve upon the commonplace ‘figure of eight’ brace, which may transfer resonance from one wall to another.
IN THE BOX | |
---|---|
Sales Package | Wharfedale DIAMOND 12.2 2-Way Bookshelf Speakers and User documentation |
General | |
---|---|
Brand | Wharfedale |
Model | DIAMOND 12.2 |
Year | |
Color | black |
Dimension | |
---|---|
Dimension | 335 x 200 x (285+28) mm |
Weight | 8.2kg/pcs |
Specification | |
---|---|
Enclosure type | bass reflex |
Transducer complement | 2-way |
Bass driver | 6.5"(150mm) advanced PP Cone |
Treble driver | 1"(25mm) Textile Dome |
AV shield | No |
Sensitivity(2.83V @ 1m) | 88dB |
Recommended ampliï¬er power | 20-120W |
Peak SPL | 96dB |
Nominal impedance | 8Ω Compatible |
Minimum impedance | 4.0Ω |
Frequency response(+/-3dB) | 50Hz ~ 20kHz |
Bass extension(-6dB) | 43Hz |
Crossover frequency | 2.0kHz |
Cabinet Volume (in litres) | 11.8L |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
