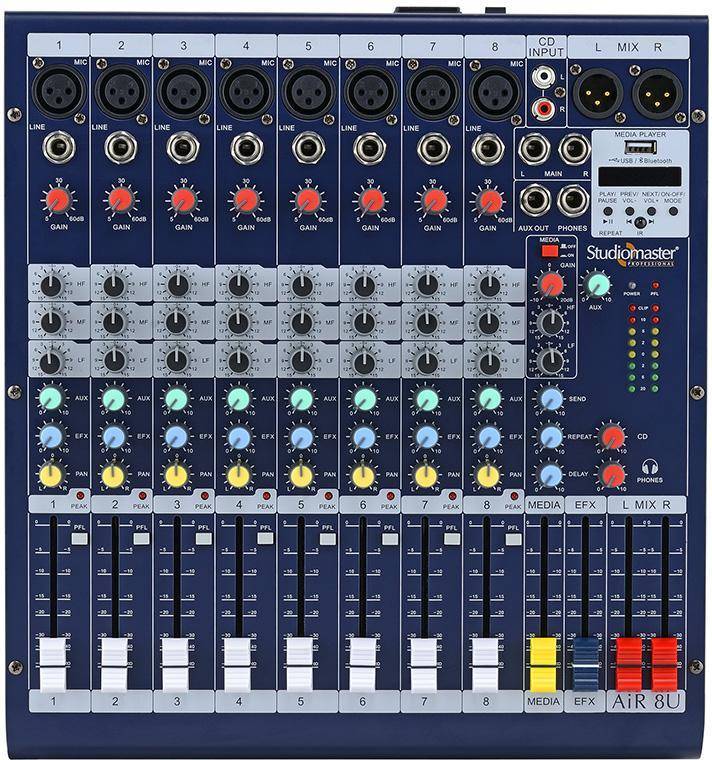

Despite its small footprint, the 8U is engineered to offer powerful capabilities. Its compact size ensures portability and convenience, making it an ideal choice for both studio setups and on-the-go audio production.

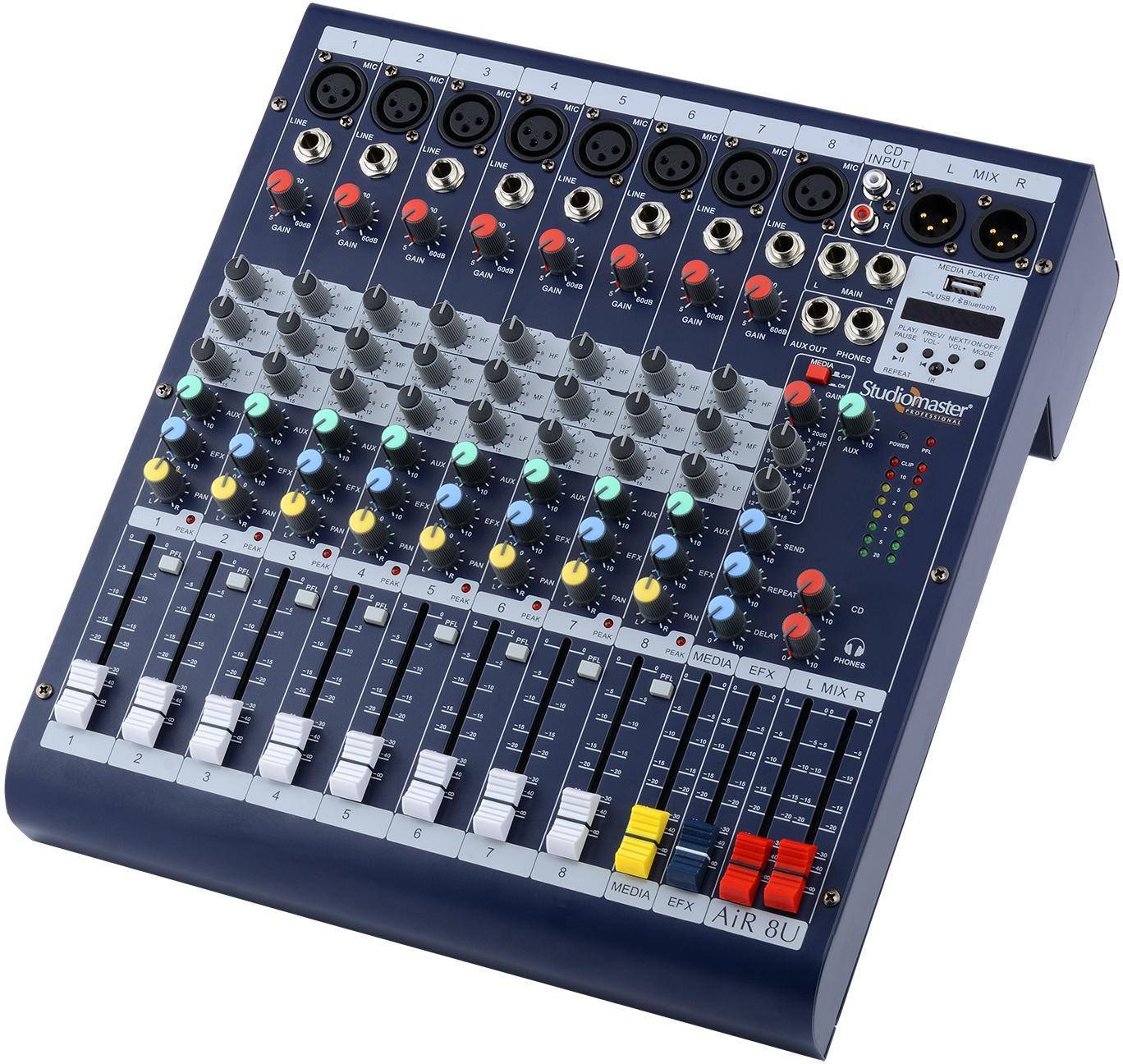

Don't be fooled by its size—the Air-8 boasts eight versatile input channels, allowing you to connect microphones, instruments, line-level sources, and more. This versatility makes it suitable for a wide range of audio scenarios, from recording podcasts to live music performances.

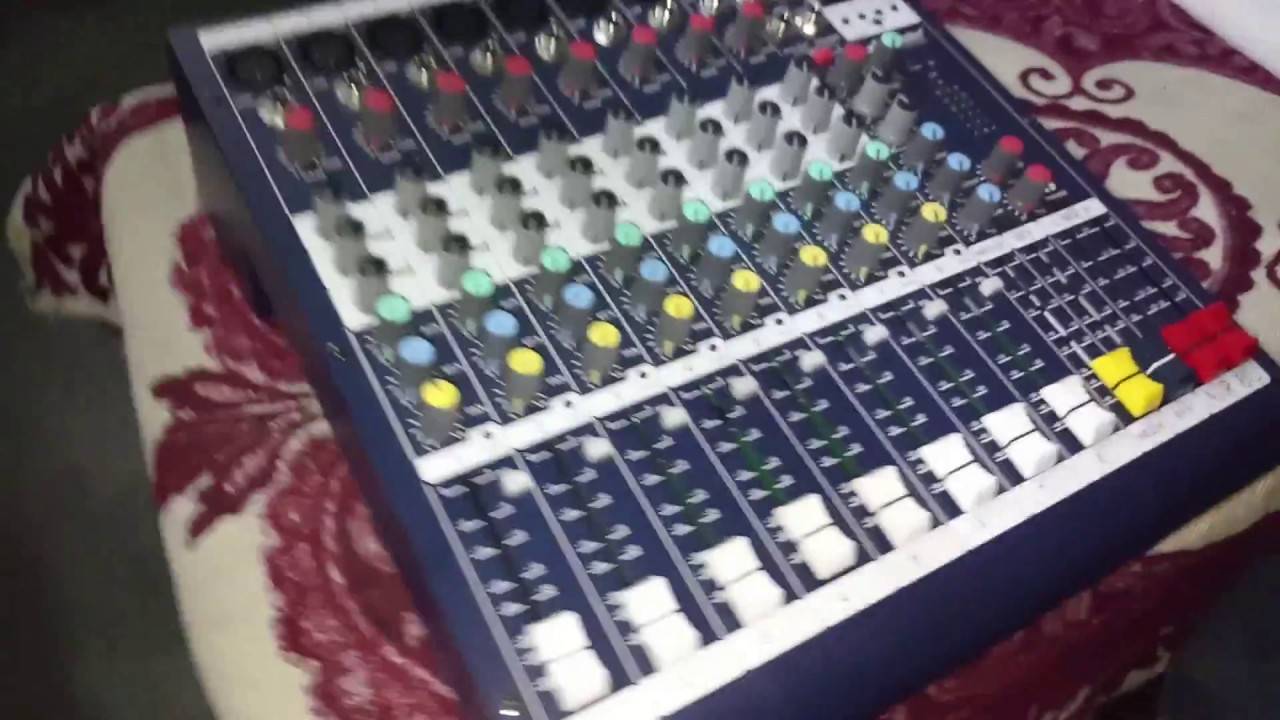

Exceptional audio quality starts with exceptional preamps. This Digital Mixer from studiomaster features high-quality microphone preamplifiers that capture the nuances of your audio sources with clarity and precision. Experience low noise, ample headroom, and pristine audio reproduction.
Keeping up with modern connectivity demands, the 8U from studiomaster includes built-in Bluetooth functionality. Easily pair your devices to stream music, incorporate remote callers in podcasts, or play backing tracks during live performances, all without the hassle of additional cables.

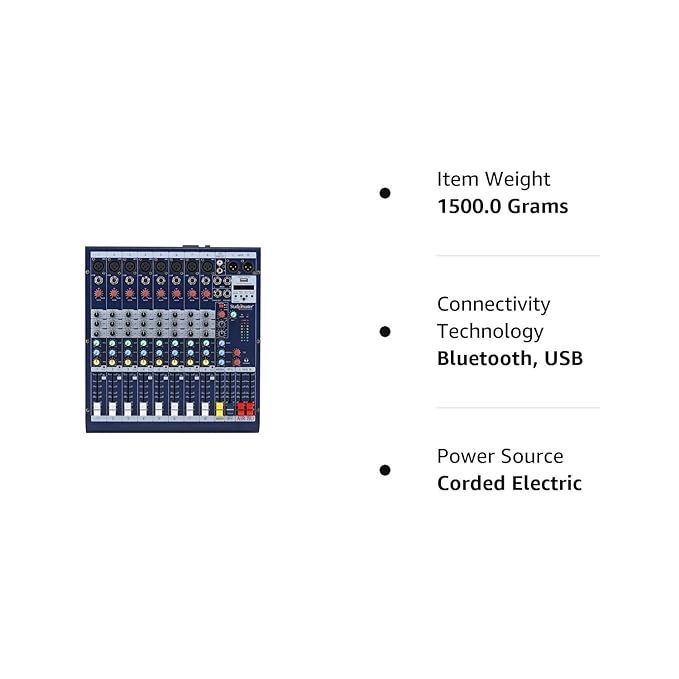

The mixer's user-friendly interface empowers both beginners and experienced users to take full control of their audio. Swiftly adjust levels, apply onboard effects such as reverb and delay, and fine-tune your sound with EQ controls for each channel. Achieve a polished, professional sound effortlessly.
The AIR-8U doesn't just stop at inputs—it offers a range of outputs to accommodate various setups. Utilize main XLR outputs to connect to speakers or recording interfaces, while the headphone output ensures private monitoring or cueing. The Aux send/return loop provides flexibility for external effects or monitor mixes.
IN THE BOX | |
---|---|
Sales Package | Studiomaster Air 8U Multipurpose Digital Mixer and User documentation |
General | |
---|---|
Brand | Studiomaster |
Model | Air 8U |
Year | |
Color | blue |
Dimension | |
---|---|
Dimension | 307 x 334 x 107 mm |
Weight | 3.8 k.g |
Specifications | |
---|---|
Number of Inputs | 8 + CD In |
EFX | Delay with repeat |
Power Supply | AC 240 V / 50Hz |
Gain (Mic/Line) | 60dB/40dB |
Total Harmonic Distortion | < 0.03% |
Signal to Noise Ratio | -85dB |
Clip indication | 4 dB prior to true clip |
Mic (Gain Min/Gain Max | -5dBu / -60dBu |
Line (Gain Min /Gain Max) | +6dBu / -40dBu |
Frequency Response | 20Hz to 20KHz (+0/-3 dB) |
Equalization (Treble/Mid/Bass) | ±15dB @ 12KHz/2.5KHz/80Hz |
Main Output level | Nominal +0dBu (0.775V RMS) / + Max 20dBu (7.75V RMS) |
Warranty | |
---|---|
Warranty Type | 1 year manufacturers Warranty |
