Audio quality is a biggest factor for any mixer, and TouchMix comes packed with pro-grade, class-A mic preamps and top-quality converters and special attention to design detail in the entire signal path. This mixer delivers crystal-clear high-quality audio quality than any other rival mixer.
The Mixer has 4-band, fully parametric EQ with high and low-pass filters. Dynamic processing has a gate and compressor with a side-chain input also available. EQ and dynamics processing are specially tuned to be both responsive and musical. All inputs channels have 100msec. delays and have use in mixing as well.

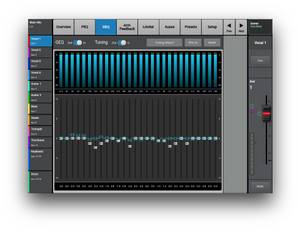

Anti-Feedback Wizard automatically drop narrow-band filters reducing feedback frequencies during set-up. The Room Tuning Wizard helps you in adjusting equalization and fine-tune system's loudspeaker to a acoustical ambience. Effects Wizards assist you for instrument and vocal. Gain Wizard constantly monitors and display inputs.

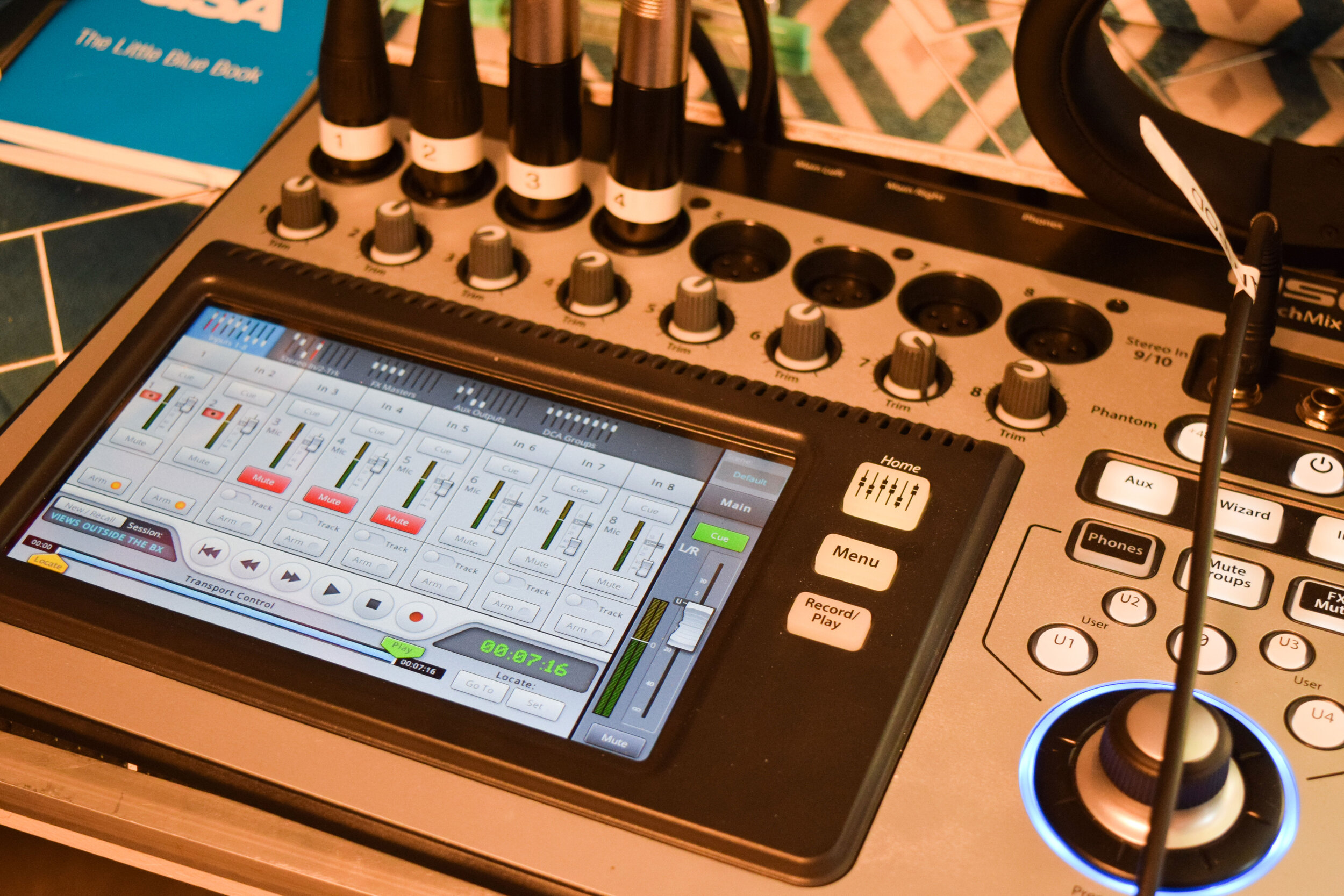

TouchMix comes with coloured, capacitive and graphical user interface touch screen. Physical controls includes large, accurate master encoder accompanied with display for quick ,smart operations. Simple mode shows a reduced set of controls for less confusing for new learners and A Advanced mode which opens up all mixer parameters for absolute controls.
There are various ways to work with Aux mix depending upon the engineer. TouchMix support all of them. fader mix can be selected from home screen. Work with all auxes at once with Aux button for overview of all aux mixes. This Mixer offers total 4-Auxialry mixes. Mixes 3 and 4 are sent to a TRS jack to drive in-ear Monitors.
IN THE BOX | |
---|---|
Sales Package | Mixer, USB Wi-Fi adapter, soft carrying case, power supply and User documentation |
General | |
---|---|
Brand | qsc |
Model | TouchMix-8 |
Year | 2021 |
Color | black |
Specifications | |
---|---|
Display | 178 mm (7 in) diagonal color TFT, capacitive touch sensing |
Inputs | 14 |
EQ Input Channel Processing | 4-band Parametric EQ with Hi/Low Shelving option, variable 24 dB/octave HPF and LPF |
Cue | Selectable. AFL, PFL |
Effects | 4 simultaneous, professional effects engines including Reverb, Echo, Delay, Chorus, Pitch Shift |
Real-Time Analyzer (RTA) | 1 (1/3 octave. Assignable to channels or user-selectable source) |
Preset Memory | 99 User Scenes, 120 Factory Presets, 99 User Presets |
Digital Connections | 2 USB A connectors |
External Control | TouchMix-8/16 Control App for iOS® and Android devices controls all mixer functions via Wi-Fi. |
Wi-Fi | USB Wi-Fi adaptor (included) or external Wi-Fi router (requires USB to ethernet adaptor) |
Sampling Frequency | Selectable 44.1 kHz or 48 kHz |
Internal Processing | 32-bit floating-point |
Frequency Response | 20 Hz-20 kHz +/-0.5 dB, any input to any output |
Crosstalk | -80 dB |
Dimension | |
---|---|
Dimension | 56 × 333 × 245 mm |
Weight | 1.95 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturers |
Warranty Period | 1 Year |
