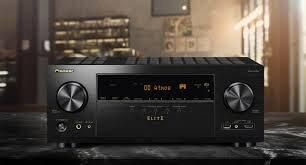

The LX505 is equipped with Dolby Atmos technology, which creates a three-dimensional sound field that immerses you in audio from all directions, including overhead. This enhances the spatial realism of movies, music, and games, making you feel like you're in the center of the action.
This 8K AV receiver by Pioneer supports 8K Ultra HD video resolution, ensuring that you can enjoy the latest high-definition content with incredible detail and clarity. It's designed to be future-proof, allowing you to connect and upscale your video sources to 8K resolution when available.
The Pioneer LX505 offers multi-zone audio capabilities, allowing you to send audio to different rooms or zones in your home. This means you can enjoy music in one room while someone else watches a movie in another, all controlled by a central source.

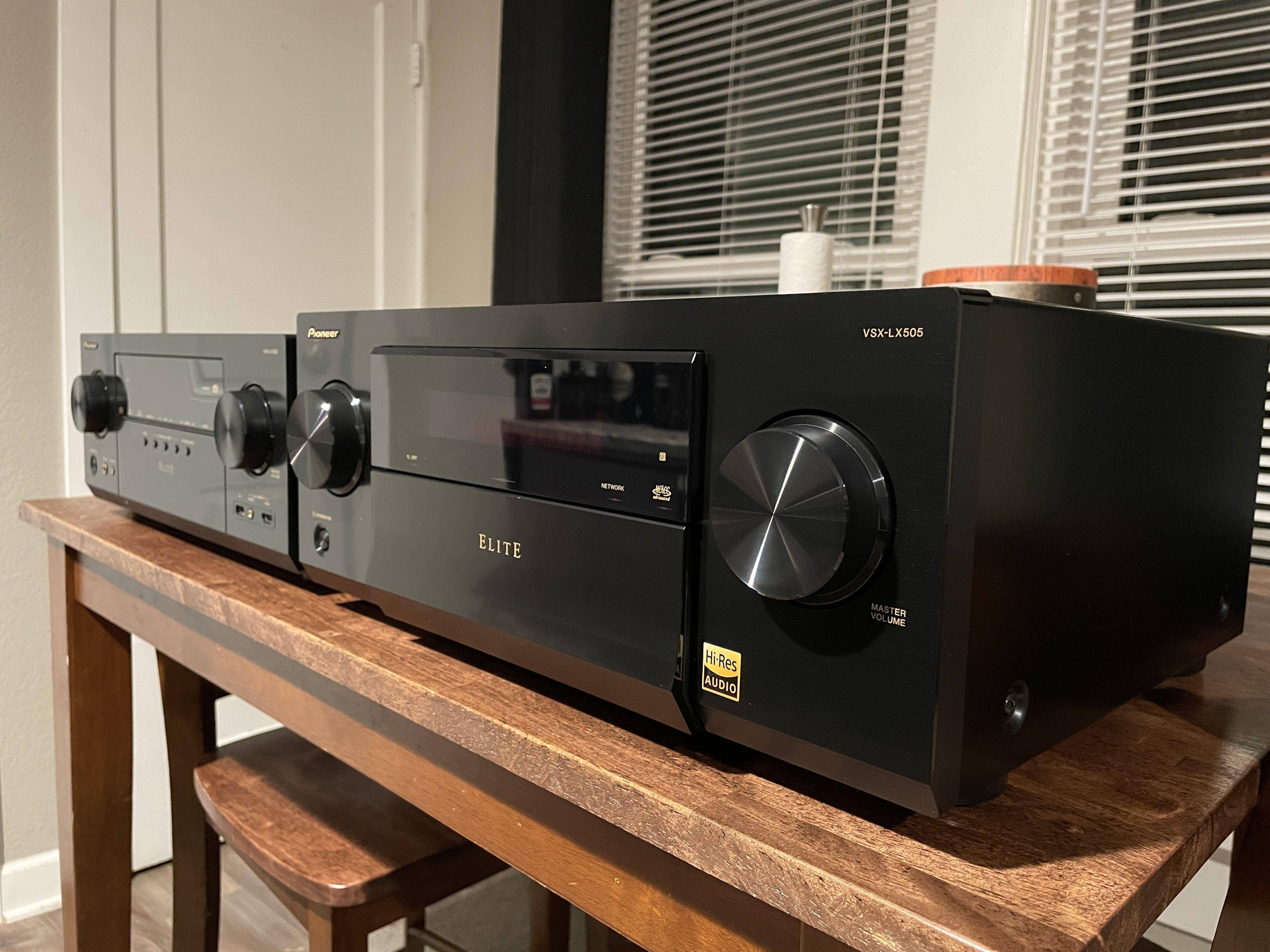

With a variety of input and output options, including HDMI, USB, optical, and analog connections, this receiver offers versatile connectivity for your various audio and video sources. VSX-LX505 Dolby Atmos also supports HDCP 2.3, the latest content protection standard, ensuring compatibility with the latest devices.
The Pioneer VSX AV Receiver is equipped with built-in Wi-Fi and Ethernet connectivity, enabling you to access a wide range of streaming services, such as Spotify, TIDAL, and Pandora. You can also use the receiver to stream music directly from your smartphone or tablet using Bluetooth or AirPlay.
The Multi-Channel Acoustic Calibration System (MCACC) automatically optimizes and calibrates the audio settings based on your room's acoustics and speaker setup. This ensures that you get the best possible sound quality tailored to your specific listening environment.
IN THE BOX | |
---|---|
Sales Package | Pioneer VSX-LX505 Dolby Atmos 8K AV Receiver and User documentation |
General | |
---|---|
Brand | Pioneer |
Model | VSX-LX505 |
Year | |
Color | black |
Dimension | |
---|---|
Dimension | 541 x 310 x 487 mm |
Weight | 16.0 kg |
Specification | |
---|---|
Channels | 9 |
Amplification Type | Direct Energy |
230 W/ch | 6 ohms, 1 kHz, THD 10 %, 1ch Driven |
120 W/ch | 8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC |
IMAX Enhanced | Yes |
Dolby Atmos®, Dolby Surround Upmixer supports DTS Formats | Yes |
DTS:X®, DTS Neural:X® Upmixer supports Dolby Formats | Yes |
Reflex Optimizer | Yes |
Dolby Atmos Height Virtualizer | Yes |
Dolby® TrueHD, Dolby Digital Plus | Yes |
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express | Yes |
DSD Disc (SACD) Playback via HDMI | 2.8 MHz/2 ch, 5.1 ch |
Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureusâ„¢ floating-point DSP (TI) | Yes |
Hi-Res Audio | 192 kHz/24-bit D/A Conversion |
Enhanced Audio Return Channel (eARC) on HDMI Out (Main) | Yes |
Advanced MCACC Auto Room Tuning | AutPhase Control Plus, Subwoofer EQ, Multi-point Standing Wave Control |
Dirac Live® Room Correction | Yes |
Advanced Sound Retriever (2ch) | Yes |
Advanced Surround Modes | Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance |
Support HDMI 2.1 with 8K | VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through |
Dolby Vision Compatible | Yes |
Ultra HD Upscaling | 4K to 8K, 1080p to 8K/4K |
Warranty | |
---|---|
Warranty Type | Official manufacturer warranty |
Warranty Period | 3 Year |
