The VSX-LX503 also includes a range of networking features, including built-in Wi-Fi, Bluetooth, and Air-Play 2 support. This makes it easy to stream music from your favorite services, such as Spotify, Tidal, or Apple Music, as well as wirelessly connect your mobile devices to the receiver.
Great feature of the VSX-LX503 by Pioneer is its support for Google Assistant and Amazon Alexa voice control. With a compatible smart speaker, you can easily control the receiver using just your voice, making it easy to adjust volume, change inputs, or even play your favorite songs.
Who want to take their home theater to the next level, the Pioneer AV Receiver also supports multi-room audio, allowing you to play music in different rooms of your home at the same time. This can be done using the receiver's built-in Chromecast feature, or by connecting compatible wireless speakers using the DTS Play-Fi platform.
In terms of connectivity, the VSX-LX503 is AV Receiver has a wide range of inputs and outputs, including eight HDMI inputs, three HDMI outputs, and multiple analog and digital inputs. This makes it easy to connect all of your devices, including game consoles, Blu-ray players, and streaming devices.
The Pioneer-VSX-LX503 also includes a range of advanced audio processing technologies, including MCACC Pro, which analyzes and adjusts the sound to match the acoustics of your room. In addition, the receiver also supports phase control, which ensures that all of the speakers in your system are in sync, and can even optimize the sound for specific types of content, such as movies or music.
The Pioneer VSX-LX503 AV Receiver is a feature-packed AV receiver that offers exceptional sound quality and a wide range of networking and connectivity options. If you're a home theater enthusiast looking for a receiver that can handle the latest immersive audio and video formats, the VSX-LX503 is definitely worth considering.
IN THE BOX | |
---|---|
Sales Package | AV Receiver, User documentation |
General | |
---|---|
Brand | Pioneer |
Model | VSX-LX503 |
Color | black |
Specifications | |
---|---|
Amplification | Channels: 9 Amplification Type: Direct Energy 180 W/ch (6 ohms, 1 kHz, THD 1 %, 1ch Driven) |
Audio Features | Dolby Atmos, Dolby Surround upmixer supports DTS Formats DTS:X, DTS Neural:X upmixer supports Dolby Formats Reflex Optimizer Dolby TrueHD, Dolby Digital Plus DTS-HD Master Audio, DTS-HD High-Resolution Audio, DTS 96/24, DTS-ES, DTS Express DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2 ch) DSD Disc (SACD) Playback via HDMI (5.6, 2.8 MHz/2 ch, 2.8 MHz/5.1 ch) Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus Floating-Point DSP (TI) 384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101 (TI) Audio Return Channel (ARC) on HDMI MCACC Auto Room Tuning Phase Control Subwoofer EQ Multi-point Standing Wave Control Advanced Sound Retriever (2ch) Advanced Surround Modes Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance |
Video Features | Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)*1 HDR10, HLG and BT.2020 Wide Colour Gamut Signal Passthrough*2 Dolby Vision Compatible*1 Ultra HD Upscaling (1080p to 4K) 3D Ready (Blu-ray Disc™, Broadcast, and Games) Deep Colour (36-bit), “x.v.Colour†|
Home Network Features | Multi Zone Music FlareConnect for Multi-room Audio Chromecast built-in Works with the Google Assistant DTS Play-Fi with Pioneer Music Control App Apple AirPlay Certified Amazon Music, Spotify, TIDAL, and Deezer Music-Streaming Services Ready Internet Radio with TuneIn Hi-Res Audio File Playback via USB/Network Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD Dolby TrueHD |
Convenience Features | Powered Zone 3/Zone2 Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in Bluetooth Wireless Technology (Version: 4.1 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in Pioneer Remote App Ready for Multi-room Entertainment Control and Network Streaming User-Friendly GUI with System/Network Setup Menu PC Setup Auto Power Off in HDMI Standby Through AM/FM Tuner 40 Presets Sleep Timer User-Friendly Simple Remote Control |
Front Terminals | HDMI 1 In USB 1 In for USB Drive MCACC Setup MIC In Phones 1 Out (Gold-Plated) |

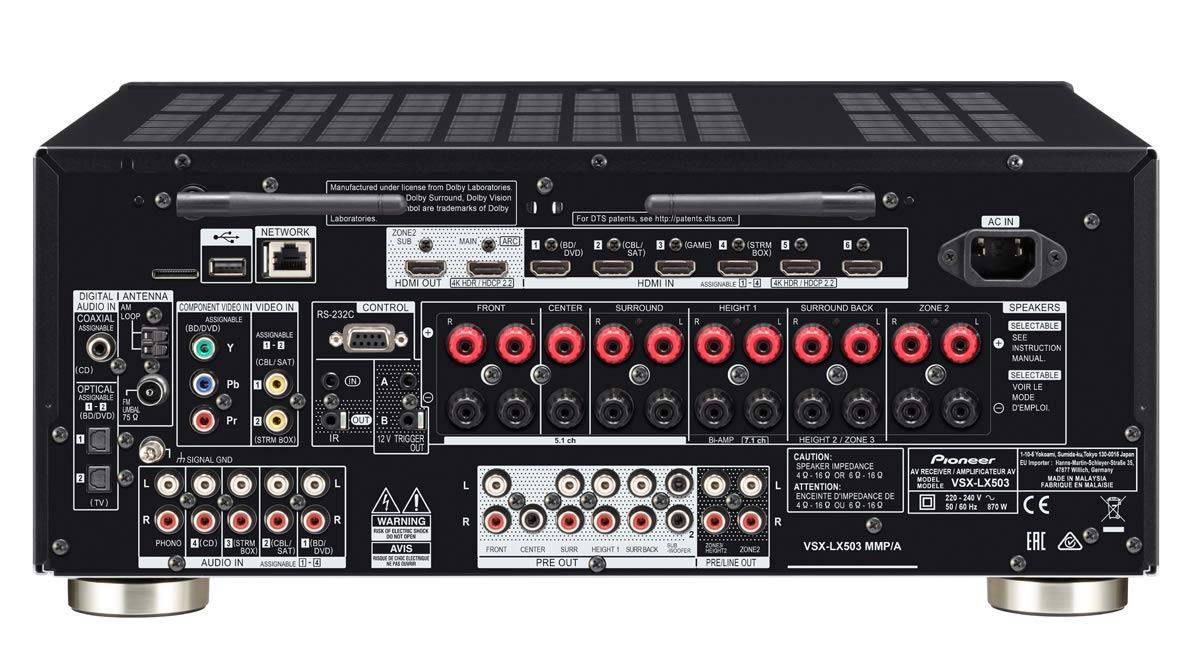

Rear Terminals | HDMI 6 In (4 Assignable) HDMI 2 Out (1 for MAIN, 1 for ZONE 2/SUB) Ethernet 1 In USB 1 In for USB Drive AV (Component) 1 In (Assignable) AV (Composite) 2 In (Assignable) Audio 1 In (Assignable) Phono (MM) 1 In Digital Coaxial 1 In (Assignable) Digital Optical 2 In (Assignable) FRONT, CENTER, SURROUND, HEIGHT 1, SURROUND BACK, SUBWOOFER x 2 Pre Out ZONE 2, ZONE 3/HEIGHT 2 Pre/Line Out Speaker 11 ch Out (FRONT, CENT ER, SURROUN D, HEIGHT 1/Bi-AMP, SURROUND BACK/HEIGHT 2/ZON E 3, ZONE 2) IR 1 In/1 Out 12 V Trigger 2 Out RS-232C FM/AM Antenna |
Dimension | |
---|---|
Dimension | 15.2 x 17.2 x 7.3 inches |
Weight | 29 pounds |
Warranty | |
---|---|
Warranty Type | Manufacturers |
Warranty Period | 1 Year |
