IN THE BOX | |
---|---|

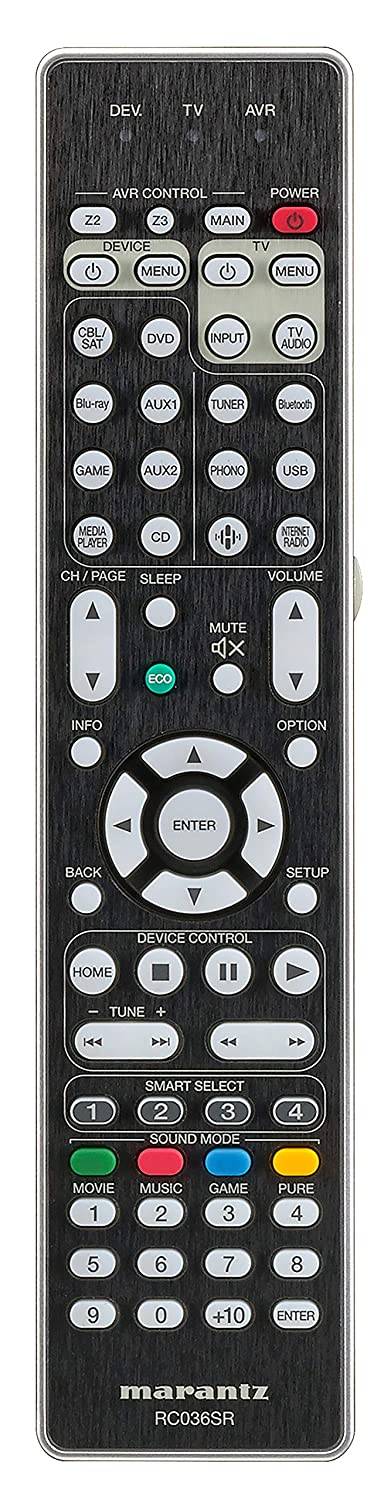

Sales Package | Receiver,Remote Control User documentation |
General | |
---|---|
Brand | Marantz |
Model | SR7013 |
Color | black |
Specifications | |
---|---|
Number of Poweramps | 9 |
Number of Speaker Terminals | 11 |
Batteries | 2 AAA batteries required. (included) |
Max Number of Processing (Preamp) Channels | 11.2 |
Rear A/V Inputs | 7 x HDMI 2 x Optical TOSLINK 2 x Digital Coaxial 3 x 3RCA Component 3 x RCA Composite 6 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw 1 x 7.1-Channel RCA |
Rear A/V Outputs | 3 x HDMI 1 x 3RCA Component 2 x RCA Composite 2 x RCA Subwoofer Pre-Out 1 x Stereo RCA Zone 2 Pre-Out 1 x Stereo RCA Zone 3 Pre-Out 1 x 11-Channel RCA Pre-Out |

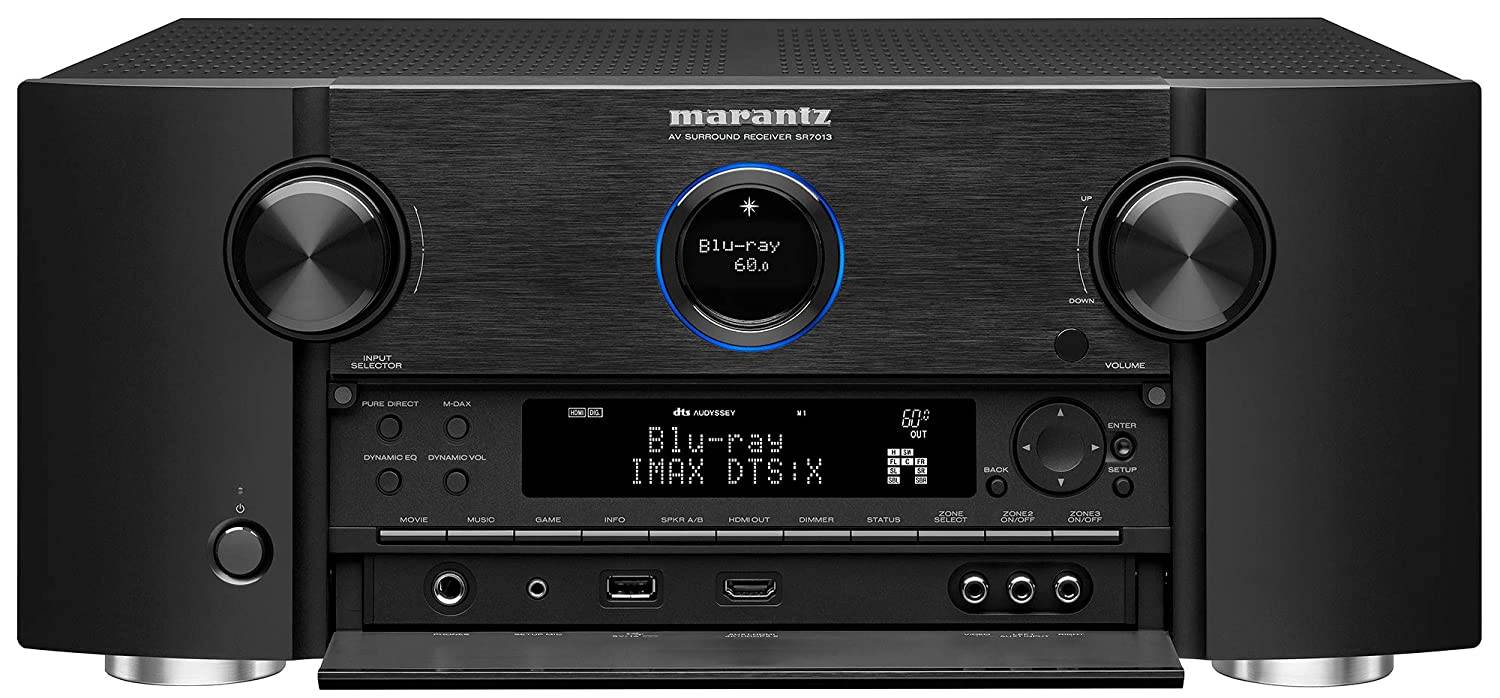

Front I/O | 1 x 1/8" / 3.5 mm Setup Mic Input 1 x USB Type-A |
Other Rear I/O | 1 x FM Antenna Terminal 1 x AM Antenna Terminal 1 x RJ45 (Ethernet) 1 x 1/8" / 3.5 mm (IR) Input 1 x RCA (Remote) Input 1 x RCA (Remote) Output 2 x 1/8" / 3.5 mm (12 V Trigger) Output 1 x DE-9 (RS-232C) Input 2 x Bluetooth/Wi-Fi Antenna Terminal |
Signal to Noise Ratio | Line: 100 dB (A-Weighted / Direct Mode) Phono: 74 dB (IHF-A) D/A Output: 102 dB |
Dimension | |
---|---|
Dimension | 15.83 x 17.32 x 7.28 inches |
Weight | 31.1 pounds |
Warranty | |
---|---|
Warranty Type | Manufacturers |
Warranty Period | 1 Year |
