Its full, crisp, yet well-balanced sound works on any source. Use the lewitt Dual Output Mode to record on a stereo track. Now you can create any polar pattern in the mix with our POLARIZER plugin, even after recording. Of course, it also plays in the top league if you use it in a classic way - no matter what you record. The high-end components and cutting-edge design join forces to redefine your recording experience.
One microphone for precise vocal and instrument recording. The LCT 640 TS works as a traditional multi-pattern microphone, a stereo microphone, and a mic that can change the polar pattern after the fact. One microphone for precise vocal and instrument recording. The Lewitt-640 microphoneTS works as a traditional multi-pattern microphone, a stereo microphone, and a mic that can change the polar pattern after the fact.
It changes the way we think about the recording process. To give you more freedom, the LCT640 by lewitt microphoneTS features a Dual Output Mode. Engage it, and you'll send the front and the back of the capsule's diaphragm to two individual outputs. This allows for stereo recording and changing the polar pattern after the fact. which is very good (and more than most 24-bit converters), but still roughly 12dB less than the standard LCT-640 version.

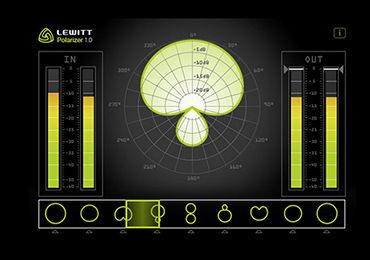

You can conveniently change and fine-tune your material recorded via Dual Output Mode. We created a plugin, called the POLARIZER. It allows to set the polar pattern dynamically. Now you can add or subtract room sound in post-production during mixing. By automating the POLARIZER, you can even create unique mixes and effects. The Lewitt microphonelogo is normally illuminated white when the mic is powered and operating in this standard mode.
The LCT-series microphone can be used in exactly the same way as its excellent sibling, and it still makes a very versatile and high-quality, general-purpose, studio mic. But it is the provision of separate outputs for the front and rear diaphragms that obviously sets this TS version apart and brings a whole raft of new possibilities. a polarity reversal switch on at least one of the channels, and a mixing bus.
Any two LC-T640 TS will always form a matched pair. Every single LCT640 TS undergoes a series of measurements followed by adjustment of the polarization voltage to achieve exactly the same sensitivity in every microphone. Usually, mid side stereophony can only be done with two microphones. But now, it is way easier to use one LCT640-TS. Just point the side of the microphone to the signal source and record both outputs on a stereo track in your DAW.
IN THE BOX | |
---|---|

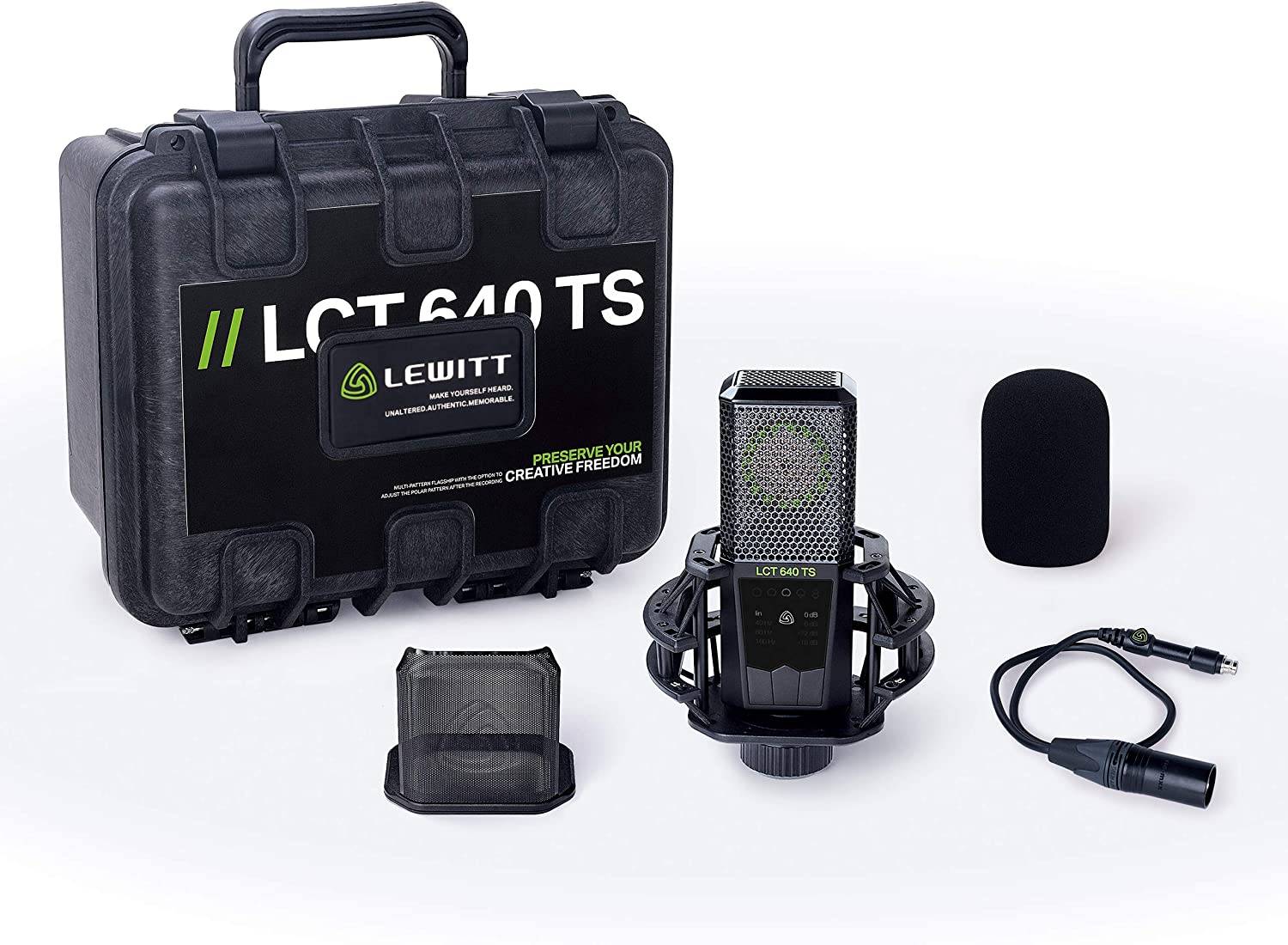

Sales Package | Lewitt LCT 640 Condenser Microphone and User documentation |
General | |
---|---|
Brand | Lewitt |
Model | LCT 640 |
Year | |
Color | black |
Dimension | |
---|---|
Dimension | 58 x 52 x 36 mm, 6.22 x 2.04 x 1.42 inch |
Weight | 425 g / 14.9 oz |
Specifications | |
---|---|
Acoustical operating principle – Pressure gradient transducer, externally polarized Diaphragm – 3 micron gold sputtered Mylar Transducer Ø – 25.4 mm, 1 in Polar pattern – selectable from Omnidirectional to Figure-8 Sensitivity – 28 mV / Pa (31 dBV) Signal / noise ratio – 83 dB (A) Equivalent noise level – 11 dB (A), cardioid (IEC 61672-1) Dynamic range of FET mic. Amp. – 121 dB (A) Max. SPL for 0.5 % THD – Max. SPL for 0.5 % THD Pre-attenuation pad – -6 dB, -12 dB, -18 dB Low-cut filter – 40 Hz (12 dB/oct), 80 Hz (12 dB/oct), 180 Hz (6 dB/oct) Input impedance – > 120 Meg ohm Rated load impedance – > 1.000 Ω Supply voltage – 48 V +/- 4 V (IEC 61938) Current consumption – 5.5 mA (IEC 61938) Mic enclosure – Zinc die cast Connector – Gold plated 3-pin XLR | Pressure gradient transducer, externally polarized |
Diaphragm | 3 micron gold sputtered Mylar |
Transducer Ø | 25.4 mm, 1 in |
Polar pattern | selectable from Omnidirectional to Figure-8 |
Sensitivity | 28 mV / Pa (31 dBV) |
Signal / noise ratio | 11 dB (A), cardioid (IEC 61672-1) |
Dynamic range of FET mic. Amp | 121 dB (A) |
Max. SPL for 0.5 % THD | |
Input impedance | Input impedance |
Warranty | |
---|---|
Warranty Type | Manufacturers Warranty |
Warranty Period | 2-years |
