Chromecast and airplay let you access online content in a perfect way. This model is one of the exclusive ones which shall help you lighten your mood with this amazing feature.
JBL 5.1 Channel 4k Soundbar is built with an output power of 550 W. It is also added by sub-woofers which amplifies the power output.

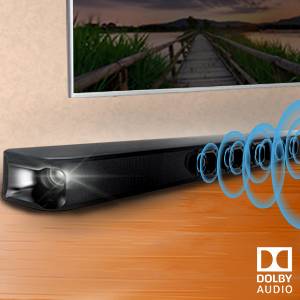

Dominate your living room with the perfectness of sound with the latest JBL 5.1 which supports multibeam technology. This is a special feature and uncommon for all. Experience music like never before.
Enjoy vivid music with clear bass with the help of Bluetooth streaming. No wires, no mess. Bluetooth streaming is always regarded as one step towards tidy.
The additional woofers play huge role in enlightenment of your room. It makes action movies, sportily actions more thrilling and enthusiastic. Rich in frequency and rich in music.
Make the most of the JBL 5.1 bar with an amazing 4k pass-through between source and viewer. Entertain yourself by watching 4k cinematic shots or views with thrilling sound.
IN THE BOX | |
---|---|
Sales Package | 1 Soundbar, Wireless Subwoofer, Remote Control with Batteries, Power Cords, HDMI Cable, Wall-Mount Bracket Kit with Screws, Quick Start Guide And Warranty Card, Safety Sheet |
General | |
---|---|
Brand | jbl |
Model | Bar 5.1 CNTR (Soundbar Unit), BAR 5.1 SUB (Subwoofer Unit) |
Color | black |
Video Specifications | |
---|---|
HDMI Video input | 1 |
HDMI Video output (With Audio return channel) | 1 |
HDMI HDCP version | 2.2 |
Audio Specifications | |
---|---|
Total speaker power output (Max. @THD 1%) | 550W |
Max SPL | 103dB |
Frequency response | 40Hz - 20KHz |
Audio inputs | 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.) |
MP3 Codec | MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 |
MP3 sampling rate | 16KHz - 48 KHz |
MP3 bitrate | 80kbps - 320kbps |
WAV sample rate | 16KHz - 48 KHz |
WAV bitrate | Up to 3000kbps |
General Specifications | |
---|---|
Power supply | 100 - 240V AC, ~ 50/60Hz |
Soundbar output power (Max. @THD 1%) | 5 x 50W |
Subwoofer output power (Max. @THD 1%) | 300W |
standby power | <0.5W |
networked standby power | <2.0W |
Operating temperature | 0°C - 45°C |
BAR 5.1 SURROUND is in compliance with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013. | Yes |
Off Mode | N/A |
Network Standby | <2.0W |
Time to standby | <20minutes |
* Standby | in the condition of all wireless connections of Soundbar are deactivated, if no provide any audio or video signal to the Soundbar unit, the Soundbar unit will automatically into standby mode in 10 minutes. |
* Networked standby | in the condition of any wireless connection of Soundbar is activated, if no provide any audio or video signal to the Soundbar unit, the Subwoofer and Soundbar unit will automatically into networked standby mode in 10 minutes. |
Any audio or video recover will bring device from standby to operation mode. | Yes |
Control and Connection Specifications | |
---|---|
USB port | Type A |
USB rating | 5V DC, 0.5A |
Supporting file format | mp3, wav |
Bluetooth version | 4.2 |
Bluetooth profile | A2DP V1.3, AVRCP V1.5 |
Bluetooth frequency range | 2402MHz - 2480MHz |
Bluetooth Max. transmitting power | <11dBm (EIRP) |
Modulation Type | GFSK, π/4 DQPSK, 8DPSK |
Wi-Fi network | IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz) |
2.4G Wi-Fi frequency range | 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels) |
2.4G Wi-Fi Max. transmitting power | <20dBm |
Modulation Type | DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM |
5G Wi-Fi frequency range | 5.15 - 5.35GHz, 5.725 - 5.825GHz |
5G Wi-Fi Max. transmitting power | <22dBm |
Modulation Type | QPSK, BPSK, 16QAM, 64QAM, 256QAM |
5G Wireless frequency range | 5161.35 - 5245.35MHz, 5736.35 - 5820.35MHz |
5G Max. transmitting power | <9dBm (EIRP) |
Modulation Type | π/4 DQPSK |
Dimension | |
---|---|
Subwoofer | Weight 10.62Kg Dimensions: 305 x 440 x 305mm / 12†x 17.3†x 12†|
Soundbar | Weight: 2.85KG Dimensions: 1018 x 58 x 100mm / 40†x 2.28†x 3.94†|
Subwoofer transducer | 10†|
Soundbar transducer | 5 x 4690†racetrack drivers +2 x 1.25†side-firing tweeters |
Warranty | |
---|---|
Warranty Type | Manufacturer's Limited |
Warranty Period | 1 Year Warranty |
