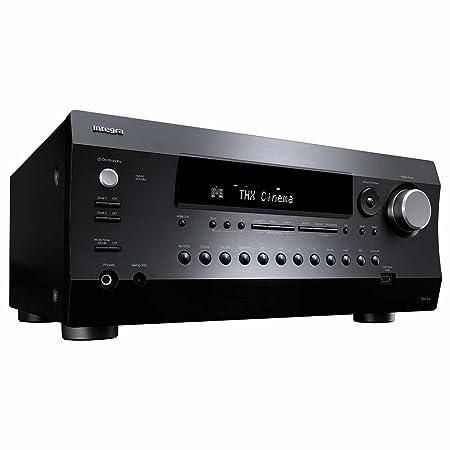

The DRX 5.4 8K HDR AV receiver is the ultimate audio-visual powerhouse for your home theater. What sets the DRX 5.4 apart is its versatility you can effortlessly connect 5.2.4 channel speakers and even add Zone 2 speakers for multi-room enjoyment. Elevate your entertainment game with the Integra DRX 5.4 and experience audio and video like never before.
IN THE BOX | |
---|---|
Sales Package | Integra DRX 5.4 8K HDR AV Receiver, User documentation |
General | |
---|---|
Brand | Integra |
Model | DRX 5.4 |
Color | black |
Power Output Front L/R | 250 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven, 120 W/Ch at 8 Ohms, 20 Hz–20 kHz, 0.08%, 2 Channels Driven, FTC |
Dynamic Power | 250 W (3 Ohms, Front) 220 W (4 Ohms, Front) 130 W (8 Ohms, Front) |
Input Sensitivity and Impedance | 200 mV rms/47 k-Ohms (Line/Unbalance) 3.5 mV rms/47 k-Ohms (Phono MM) |
THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz, Half Power) |
Rated RCA Output Level and Impedance | 1 V rms/470 Ohms (Subwoofer Pre-out) 200 mV rms/470 Ohms (Zone 3/Height 2/Pre-/Line-out) |
Phono Overload | 70 mV (MM, 1 kHz, 0.5%) |
Frequency Response | 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) |
Tone Control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
Signal-to-Noise Ratio | 106 dB (IHF-A, Line) 80 dB (IHF-A, Phono) |
Speaker Impedance | 4 Ohms–16 Ohms |
Power Supply | AC 120 V~, 60 Hz |
Power Consumption | 850 W |
Standby Power Consumption | 0.1 W |
Tuner Section | |
---|---|
Tuning Frequency Range | FM 87.5 MHz–107.9 MHz AM 530 kHz–1,710 kHz |
FM/AM Preset Memory | 40 Stations |
Dimension | |
---|---|
Dimension | 17 1/8Ë x 7 13/16Ë x 15 5/16Ë (435 x 198 x 388.5 mm) |
Weight | 17.0 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacture warranty |
