IN THE BOX | |
---|---|

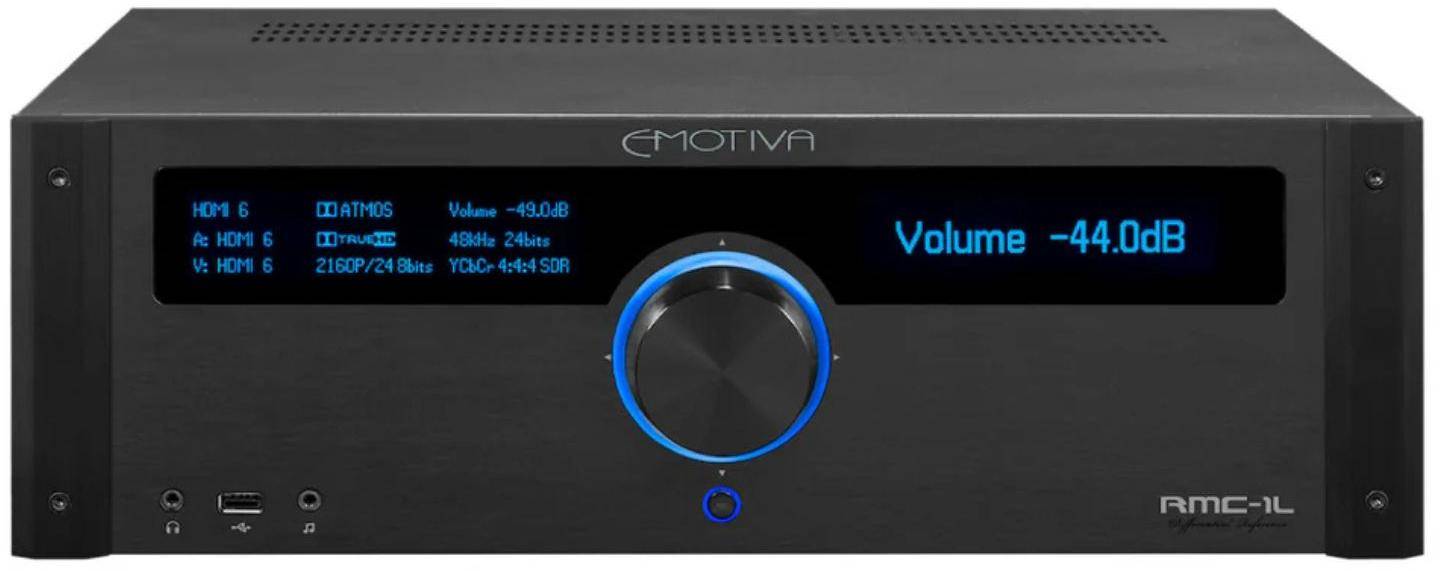

Sales Package | Emotiva RMC-1L - 16 Channel Reference Cinema Processor |
General | |
---|---|
Brand | Emotiva |
Model | RMC-1L |
Color | black |
Direct Mode | Minimal processing with bass management. |
Surround Mode | Full surround sound processing, with bass management and room correction. |
Stereo Mode | Full bass management and room correction for stereo input signals. |
Surround Sound Processing Support | Dolby Atmos (up to 9.1.6). Dolby TrueHD (up to 7.2). Dolby Digital Plus. Dolby Digital. DTS:X (up to 7.1.4) DTS-HD Master Audio. DTS-HD High Resolution Audio. DTS 5.1. Multi-Channel PCM. |
Digital Post Processing Support | Dolby Surround. DTS Neural:X |
Front Panel Display | Dual, independently configurable, 64 x 256 resolution, blue OLED displays. |
On-Screen Display (OSD) | Configurable full color OSD displayed over live video, including 4k and 3D sources. |
Analog Audio Inputs | (1) pair; stereo: Reference quality analog audio (balanced XLR). (3) pairs; stereo: Reference quality analog audio (unbalanced; machined gold-plated RCA connectors) |
Analog Audio Outputs | (1) set; 16 channels: Main analog audio outputs (balanced XLR). (1) pair; stereo: analog line level Zone 2 output (unbalanced). (1) high quality 1/8” stereo headphone output. |
Digital Video Inputs and Outputs | (8): HDMI digital video inputs: HDMI 2.0b with HDCP 2.2 (all inputs support HDMI 2.0b and HDR, including dynamic HDR and Dolby Vision). (2): HDMI digital video outputs: HDMI 2.0b with HDCP 2.2 (one with CEC and ARC). (both outputs support HDMI 2.0b and HDR - including dynamic HDR and Dolby Vision). |
Digital Audio Inputs | Internal high-performance AM/FM tuner. (4): Toslink optical S/PDIF digital audio (up to 24/192). (4): Coax (RCA) electrical S/PDIF digital audio (up to 24/192). (1): AES/EBU (XLR) digital audio. (1): USB Type B digital audio (UAC2 USB audio up to 24/192k) Digital PCM and DSD audio supported on all HDMI inputs and USB input |
Digital Audio Outputs | (1): Toslink optical S/PDIF digital audio. (1): Coax (RCA) electrical S/PDIF digital audio. |
Dimension | |
---|---|
Dimension | 17” Wide x 15.5” Deep x 5.25” High |
Weight | 9.9 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
