Allen & Heath Sq7 Digital Mixing Console

|
MODEL: SQ7
IN STOCK | CONDITION: New
WARRANTY: Official Manufacture warranty
COLOR
black Allen & Heath Sq7 Digital Mixing Console color image
Special Deal
3 Left in Stock!
Deal Claimed ( 45%)
special offer image
Offer Price Valid For Limited Time
Price: ₹ 459999.00
Today's Price:421800
Price : Rs. 459999.00 8% off
Rs. 421800 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery
original stamp icon
offer icon

More Offers

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • 96kHz FPGA Processing: High-resolution audio processing for exceptional sound quality.
  • 32 Fully Assignable Channels: Versatile channel configuration for diverse mixing needs.
  • 12 Stereo Mixes: Extensive monitor mixing capabilities for performers.
  • Touchscreen Control: Intuitive touchscreen interface for easy navigation and control.
  • Expandable I/O Options: Scalable connectivity options for diverse audio setups.
Product features

The SQ 7 digital mixer, from Allen & Heath is known for its XCVI 96kHz FPGA audio engine offering a range of live sound mixing capabilities. Despite its processing power the SQ 7 maintains notch audio quality with minimal latency of under 0.7ms. It provides flexibility for creating monitor mixes supporting up to 12 stereo mixes (groups or auxiliaries) along with the LR output. Additionally it features eight FX engines that deliver high quality effects and dedicated returns. With a 32 x 32 USB audio interface and convenient controls for mixing the Allen & Heath SQ 7 is a choice, for music events, worship services and educational settings.

a mixer capable ready to expand
https://www.vplak.com/images/allen-heath/SQ7description/a-mixer-capable-and-ready-to-expand.jpg
a mixer capable ready to expand

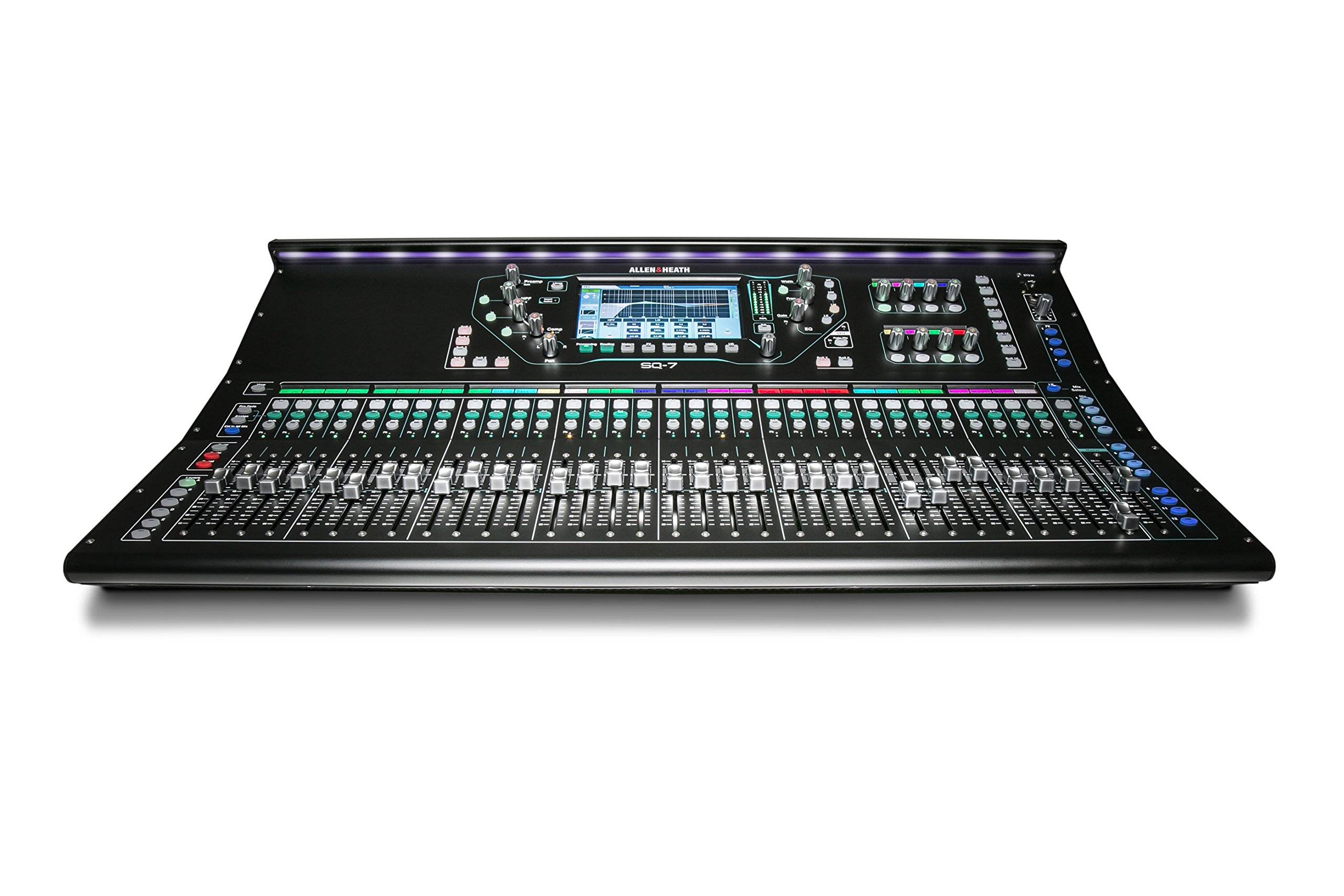

A mixer capable ready to expand

From the start the SQ 7 digital mixer provides 48 input channels. There are 33 faders, for mixing organized into six fader layers to handle bigger mixes efficiently. Additionally the SQ 7 includes an SLink port, for audio and expansion purposes. Moreover it comes equipped with a 64 channel I/O port that is all set for network audio integration.

Add
large mixing can easily be handled with sq7
https://www.vplak.com/images/allen-heath/SQ7description/large-mixing-can-easily-be-handeled-with-sq7.jpg
large mixing can easily be handled with sq7

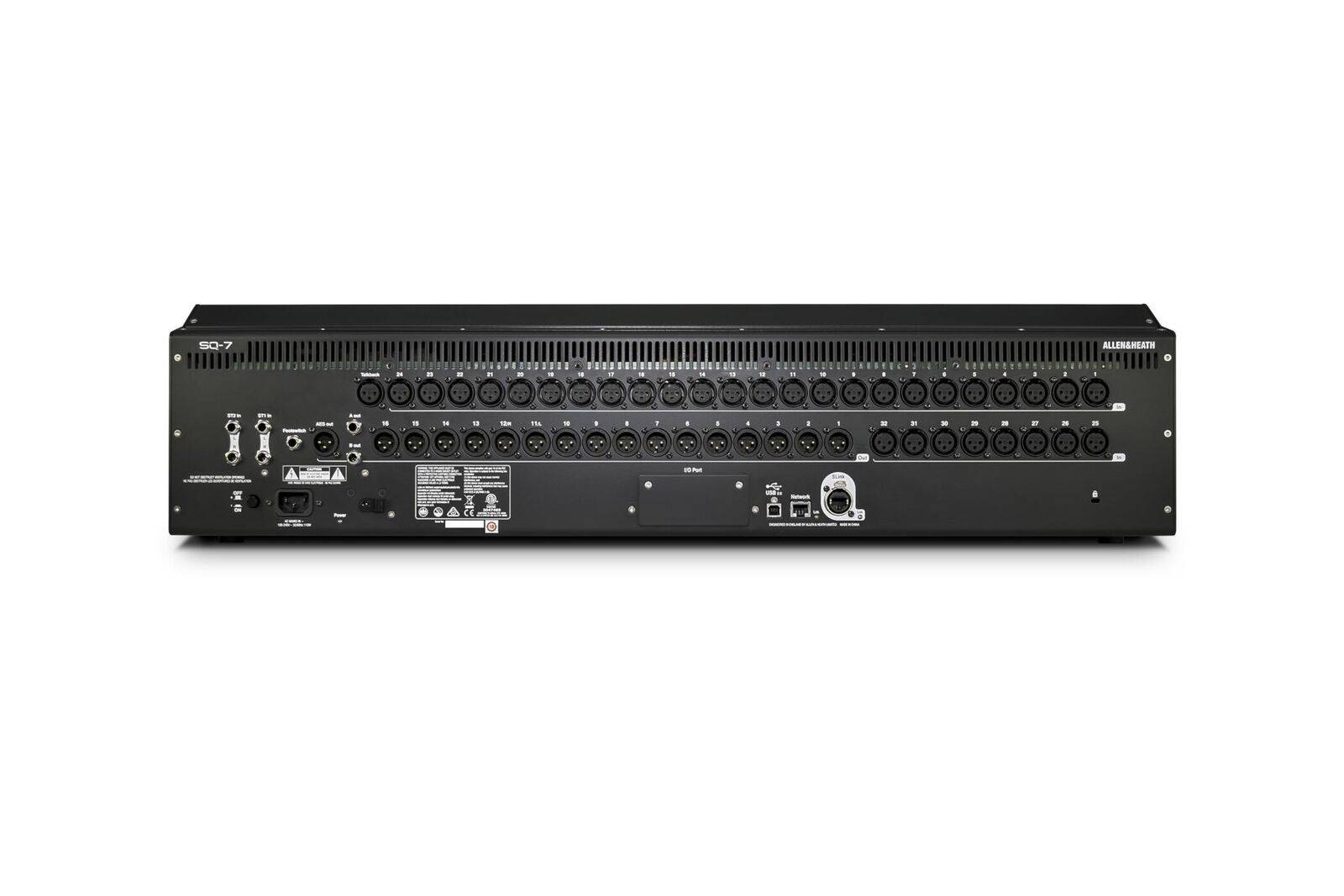

Large mixing can easily be handled with SQ7

When working with microphones the SQ 7s Automatic Mic Mixing feature comes in handy. It serves as a backup plan especially when you have volunteers handling the sound system. With Automatic Mic Mixing you can rest assured that there won't be any differences, in microphone levels during events, with multiple microphones.

Add
directly record to usb
https://www.vplak.com/images/allen-heath/SQ7description/directly-record-to-usb.jpg
directly record to usb

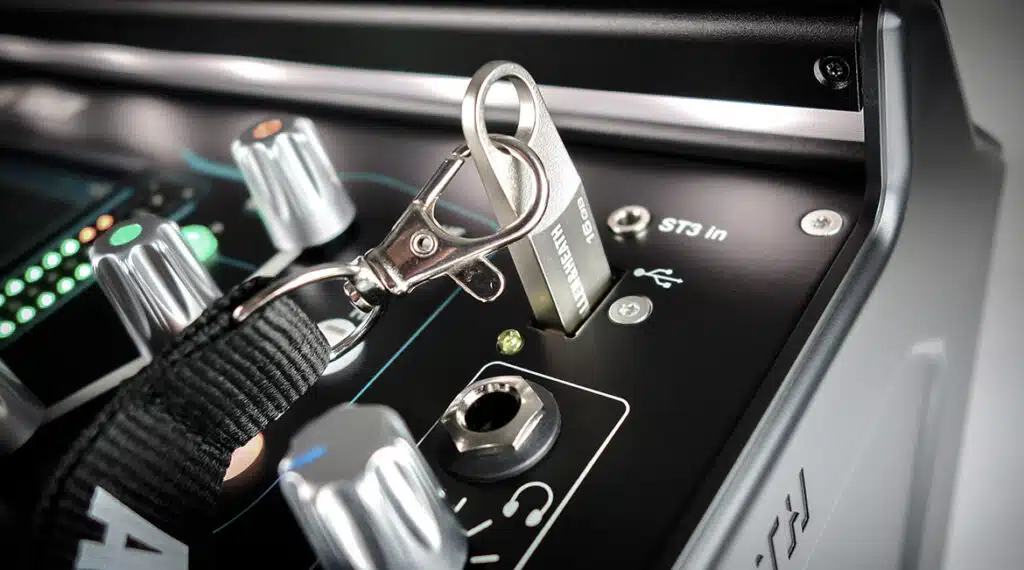

Directly record to usb

Using the SQ Drive feature allows you to effortlessly record and play back, up to 16 channels at 96kHz, 32 channels at 48kHz or a stereo recording of your performance directly, onto a USB key or drive.

You won't need to deal with any software setup soundcard driver problems or carry a laptop to your performance.

Add
audio interface is build in with comprehensive io

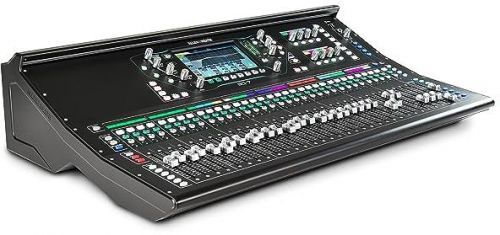

Audio interface is build in with comprehensive io

Creating multitrack recordings is easy, with the Allen & Heath SQ 7 thanks to its integrated 32 x 32 USB audio interface. Sweetwater engineers also find it handy for recording to a USB drive. Additionally there's a 64 channel I/O port for network audio connections and an SLink port, for expanding audio and I/O capabilities.

sq comes with world class fx

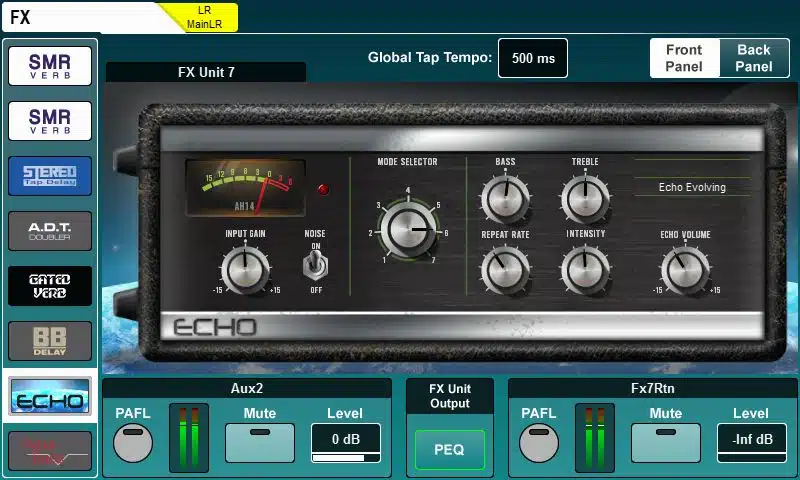

SQ comes with world class FX

SQ comes equipped with 8 stereo effects engines. Includes the regarded Rack Extra collection, which offers reproductions of iconic vintage reverbs, gated reverbs, delays, modulators and additional effects.

Each engine also has its stereo return path allowing you to leverage all 48 input channels without any restrictions.

sq7 powerful processing

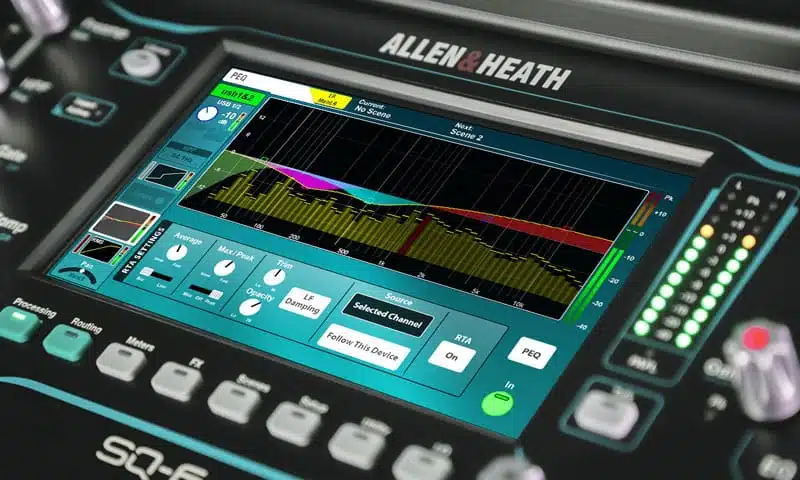

SQ7 powerful processing

Each input includes a high pass filter (HPF) a gate, with sidechain and filter a 4 band parametric equalizer with real time analysis (RTA) and a Peak/RMS compressor for adjusting and shaping levels and transients.

Mixes come equipped with both an equalizer and a 28 band graphic EQ along, with a compressor that can be activated as needed.

IN THE BOX
Sales Package Allen & Heath SQ7 Digital Mixing Console,User documentation
General
Brandallen-heath
ModelSQ7
Colorblack
Channels
48
Inputs - Mic Preamps32 x XLR
Phantom Power32 channels, Talkback
Inputs - Line
32 x XLR (mic/line)
Inputs - Other2 x 1/4" (Stereo 1), 2 x 1/4" (Stereo 2)
Outputs - Main2 x XLR, 2 x 1/4" (A out, B out)
Outputs - Other
16 x XLR (stereo mixes, L/R)
Outputs - Digital1 x XLR (AES)
Busses/Groups36 Bus
Inserts
Internal Pre EQ/Compressor
Talkback1 x XLR
MIDI I/OUSB (control)
Dimension
Dimension
Height: 7.8"
Depth: 20.3"
Width: 31.7"
Weight10.4 kg
Warranty
Warranty TypeOfficial Manufacture warranty

Additional Info
